Battery Removal Tutorial For MSI BTY-M6K / GF63 THIN 9SC / MS-16W1 / GF65 THIN 9SEXR

Battery Removal Tutorial For MSI BTY-M6K / GF63 THIN 9SC / MS-16W1 / GF65 THIN 9SEXR

Before starting, make sure your laptop is fully powered off and unplugged from any power source. Use the right tools—typically a screwdriver set included in the package—and work on a non-conductive surface to prevent static electricity damage. It's also wise to wear anti-static wristbands to protect sensitive components.

This tutorial will guide you in detail how to remove the MSI BTY-M6K / GF63 THIN 9SC / MS-16W1 / GF65 THIN 9SEXR laptop battery. You can watch the tutorial video below.

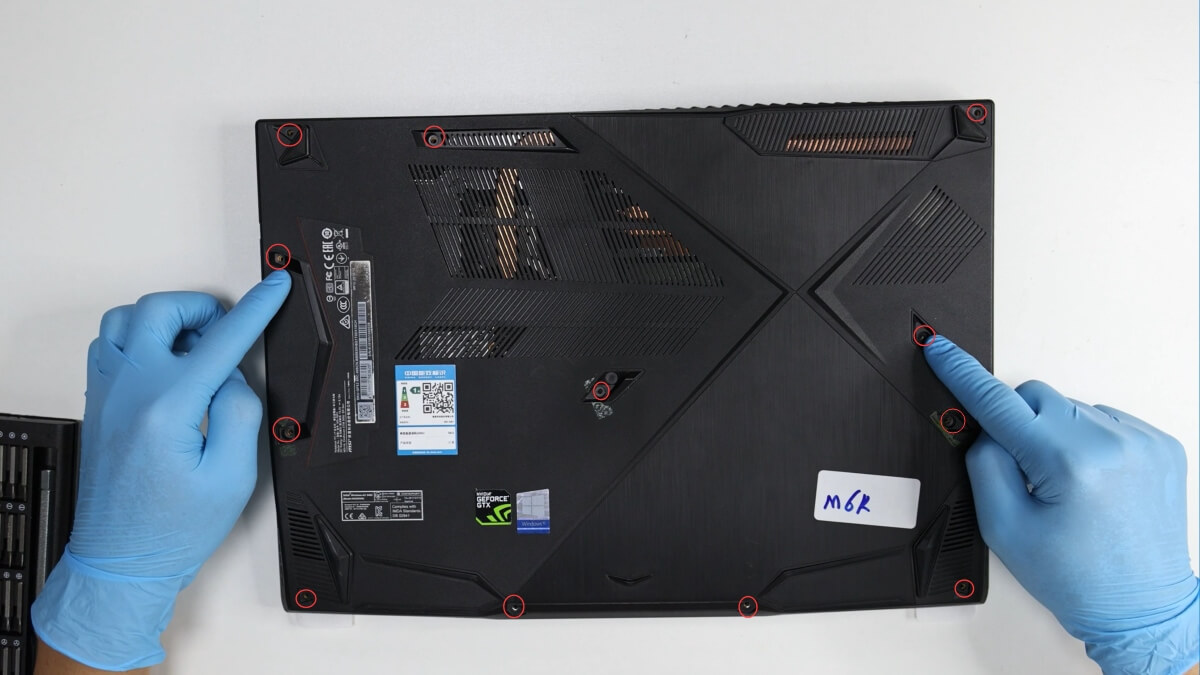

Step 1

After making sure your computer is completely shut down and disconnected from the power supply, unscrew the screws on the rear cover below.

Battery Removal Tutorial For MSI BTY-M6K / GF63 THIN 9SC / MS-16W1 / GF65 THIN 9SEXR

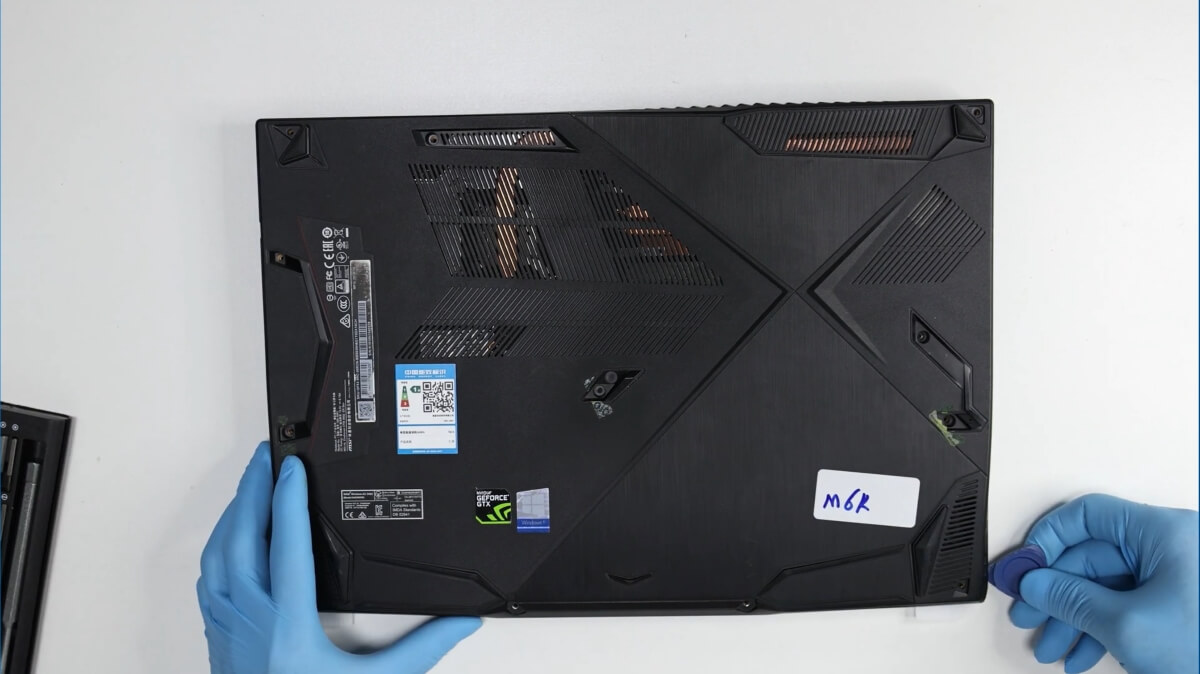

Step 2

Pry off the back cover with a piece of plastic.

Battery Removal Tutorial For MSI BTY-M6K / GF63 THIN 9SC / MS-16W1 / GF65 THIN 9SEXR

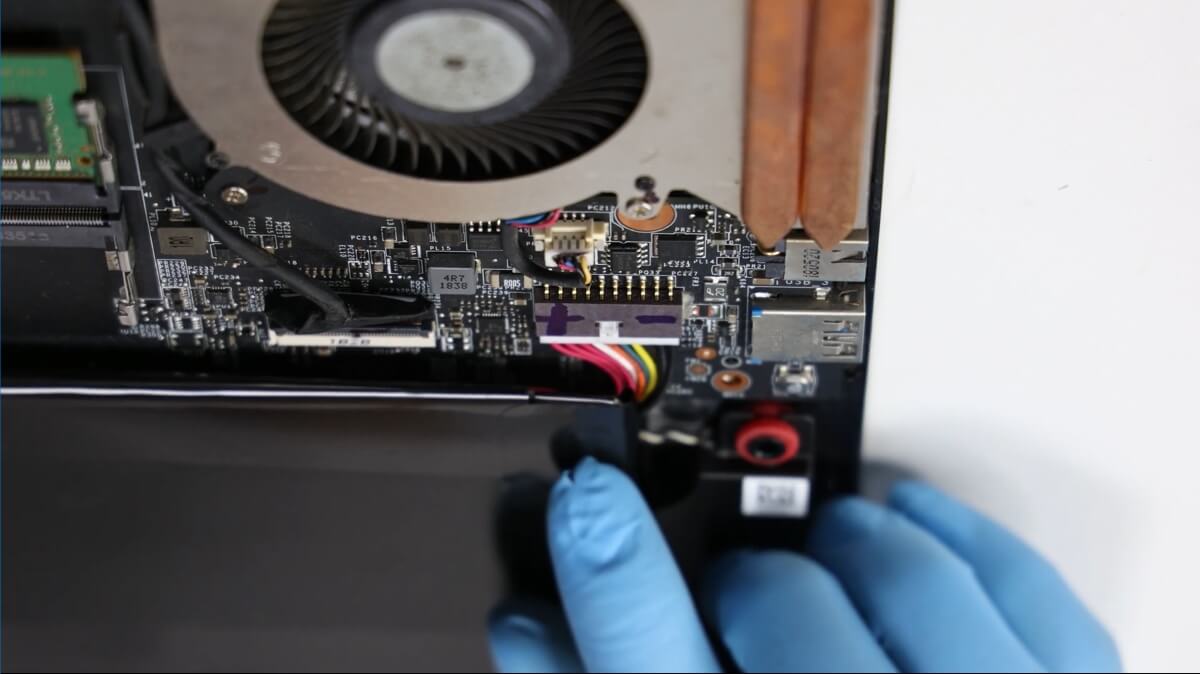

Step 3

Unplug the battery connector (no screws on this battery).

Battery Removal Tutorial For MSI BTY-M6K / GF63 THIN 9SC / MS-16W1 / GF65 THIN 9SEXR

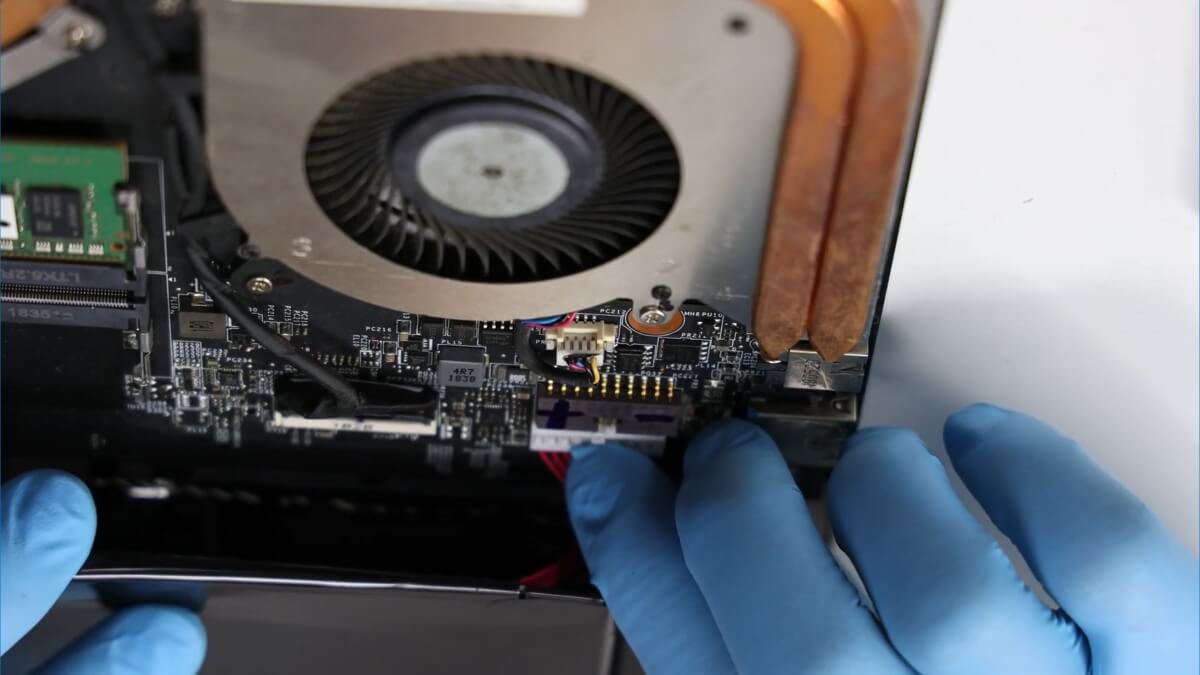

Step 4

Install a new battery and connect the connector.

Battery Removal Tutorial For MSI BTY-M6K / GF63 THIN 9SC / MS-16W1 / GF65 THIN 9SEXR

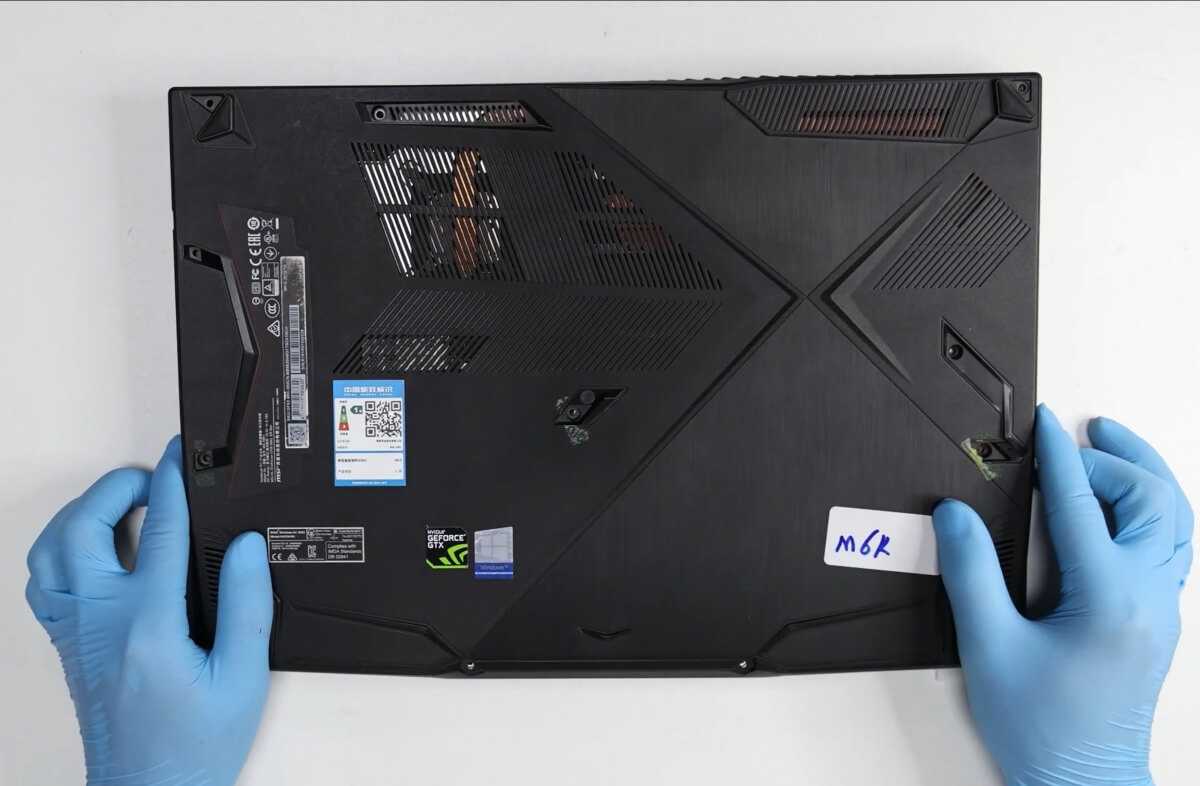

Step 5

Put on the back cover and screw the screws back in as they were.

Battery Removal Tutorial For MSI BTY-M6K / GF63 THIN 9SC / MS-16W1 / GF65 THIN 9SEXR

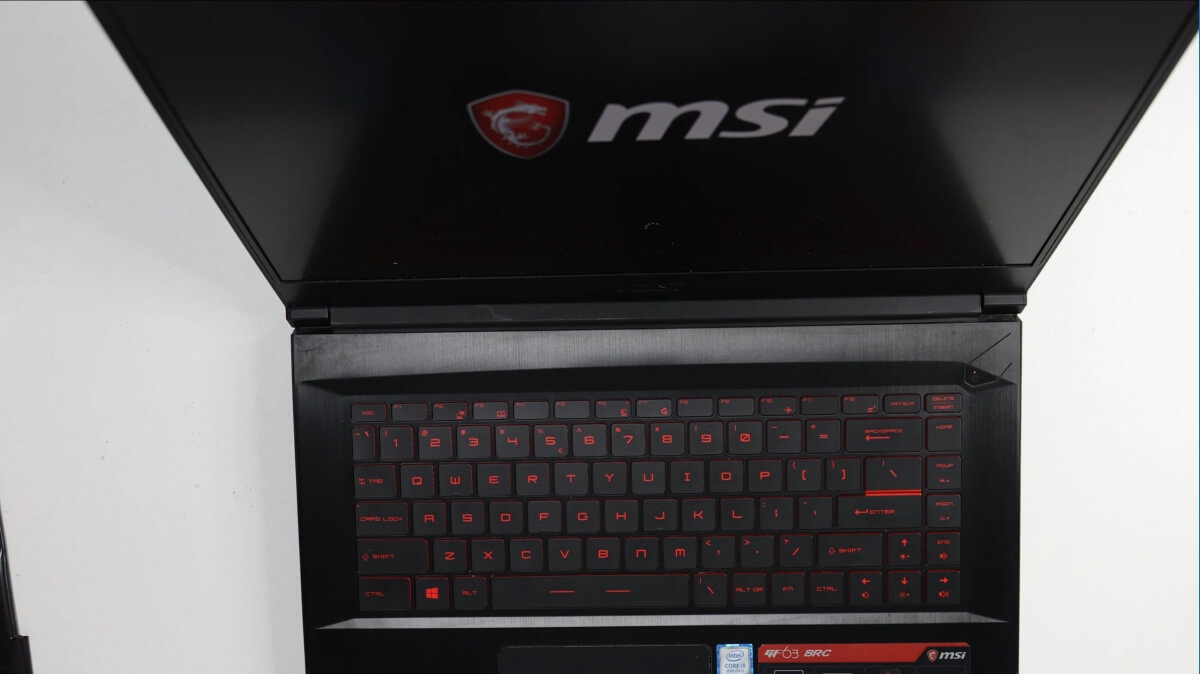

Step 6

Click the boot button and observe whether it is normal or not, if it is normal then it means the installation is successful.

Battery Removal Tutorial For MSI BTY-M6K / GF63 THIN 9SC / MS-16W1 / GF65 THIN 9SEXR
