Before starting, make sure your laptop is fully powered off and unplugged from any power source. Use the right tools—typically a screwdriver set included in the package—and work on a non-conductive surface to prevent static electricity damage. It's also wise to wear anti-static wristbands to protect sensitive components.
This tutorial will guide you in detail on how to remove the Acer AC14B3K 4ICP5 / 57/80 AC14B8K laptop battery. You can watch the tutorial video below.
Step 1

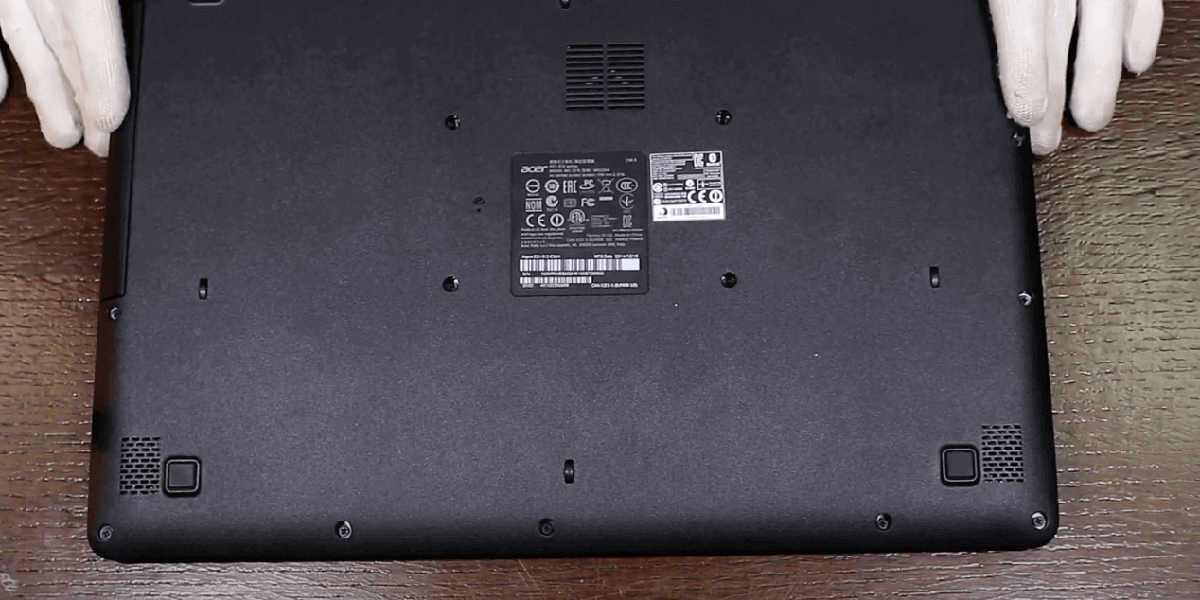

Place the Acer laptop on a flat surface with its back facing up.
Step 2

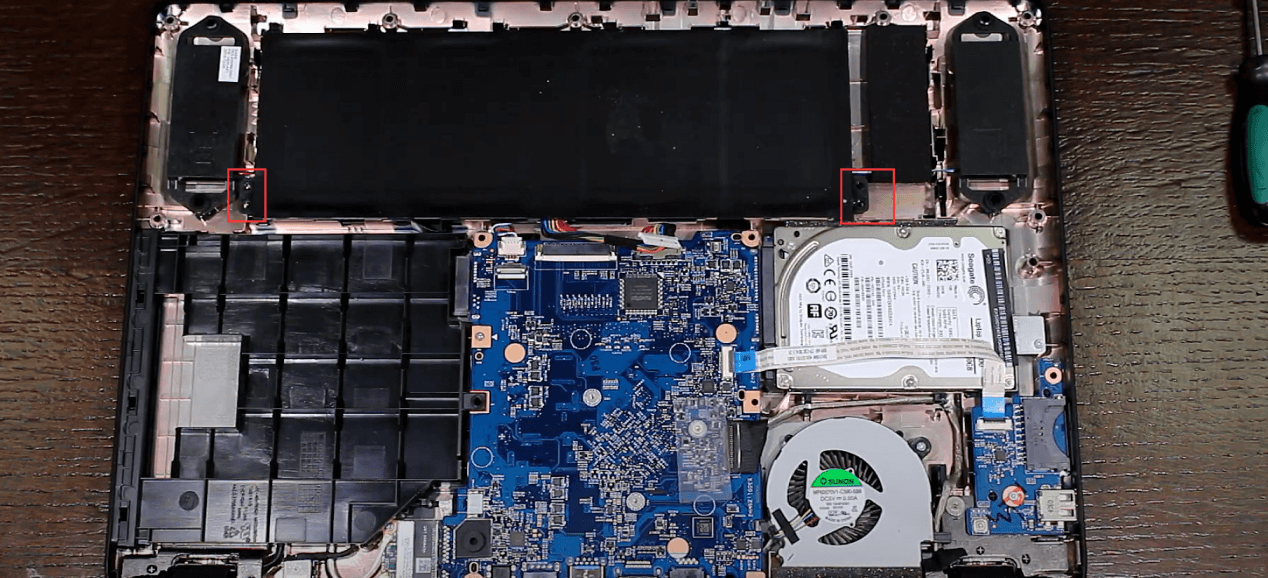

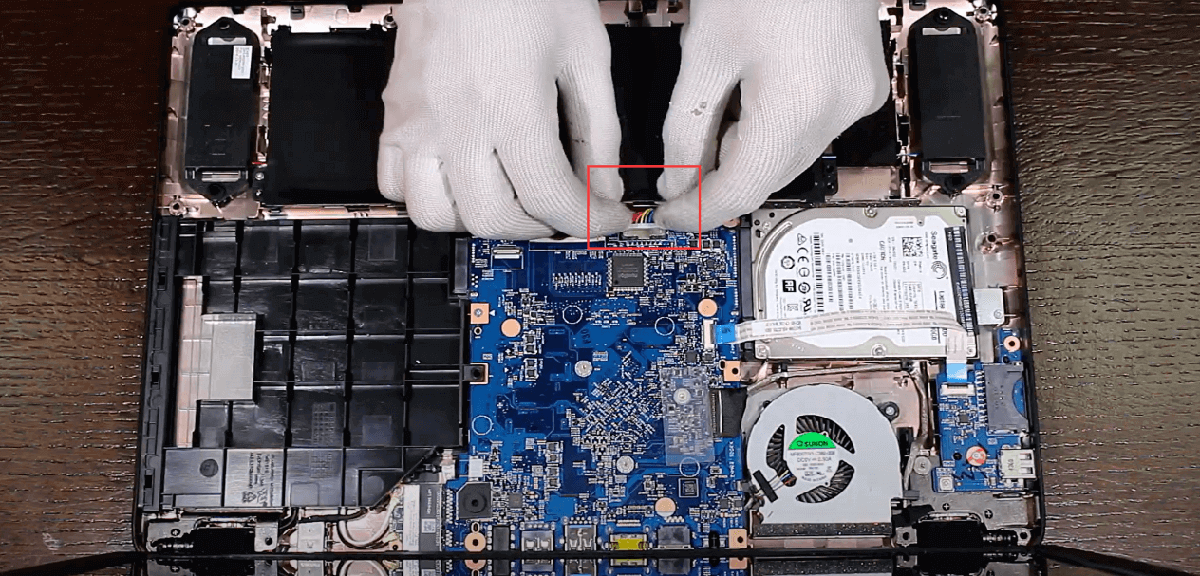

Find the battery area. The area outlined in red in the figure below is where the battery is connected to the motherboard. You need to hold the white interface with both hands and slowly remove the interface.
Step 3
The battery is usually secured by two clips. Use an appropriate tool (such as a screwdriver) to remove the screws.
Step 4

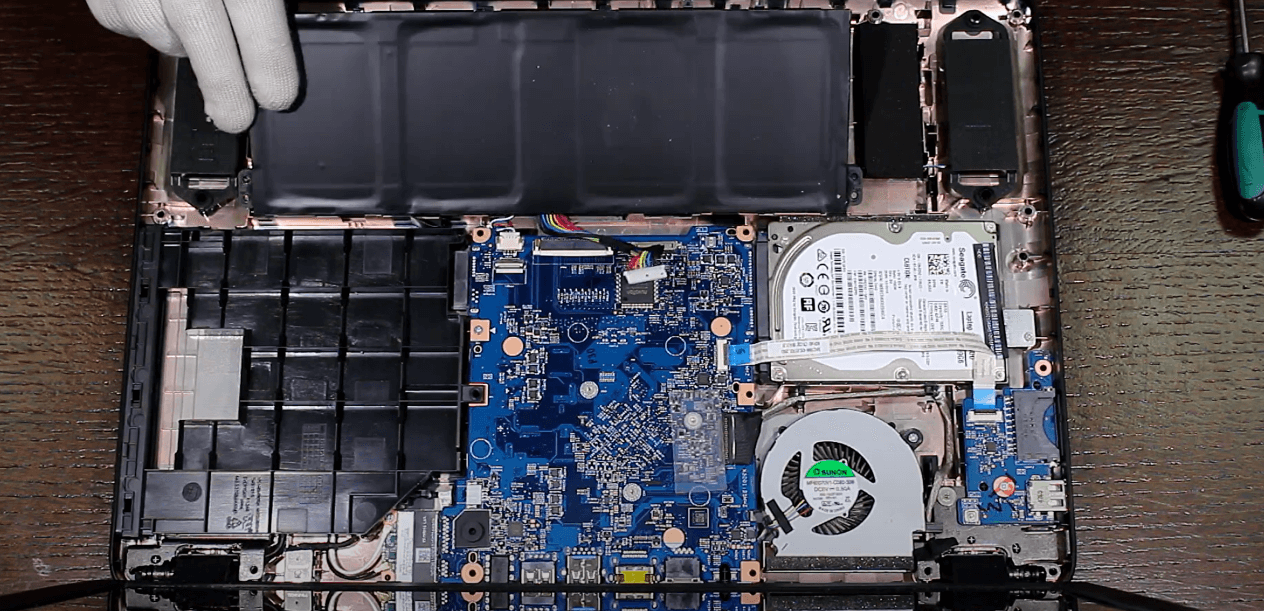

Remove the battery slowly.
Step 5

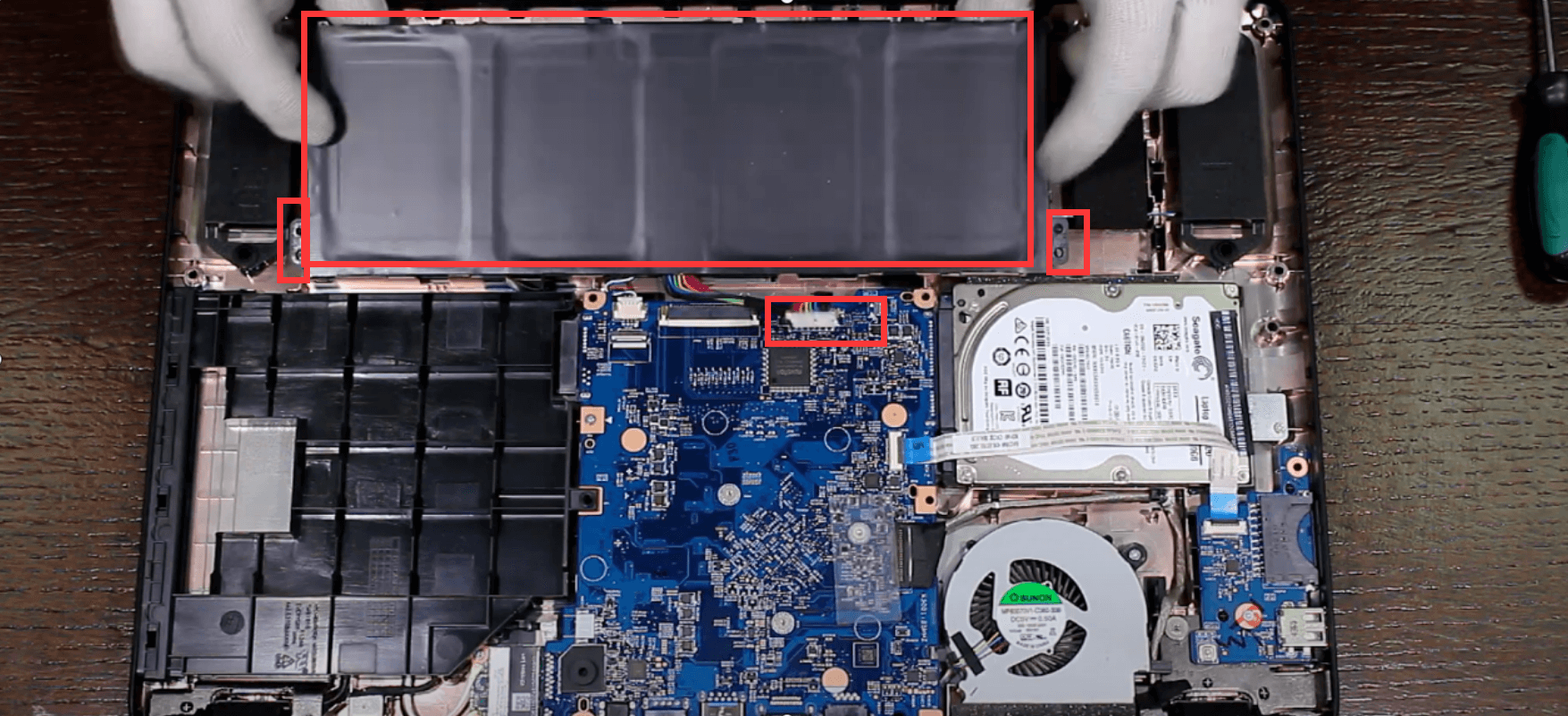

When reinstalling the battery, align the battery clips into position, press firmly to ensure that the battery is firmly installed in place, screw back the screws, and insert the white connector back into the interface.
