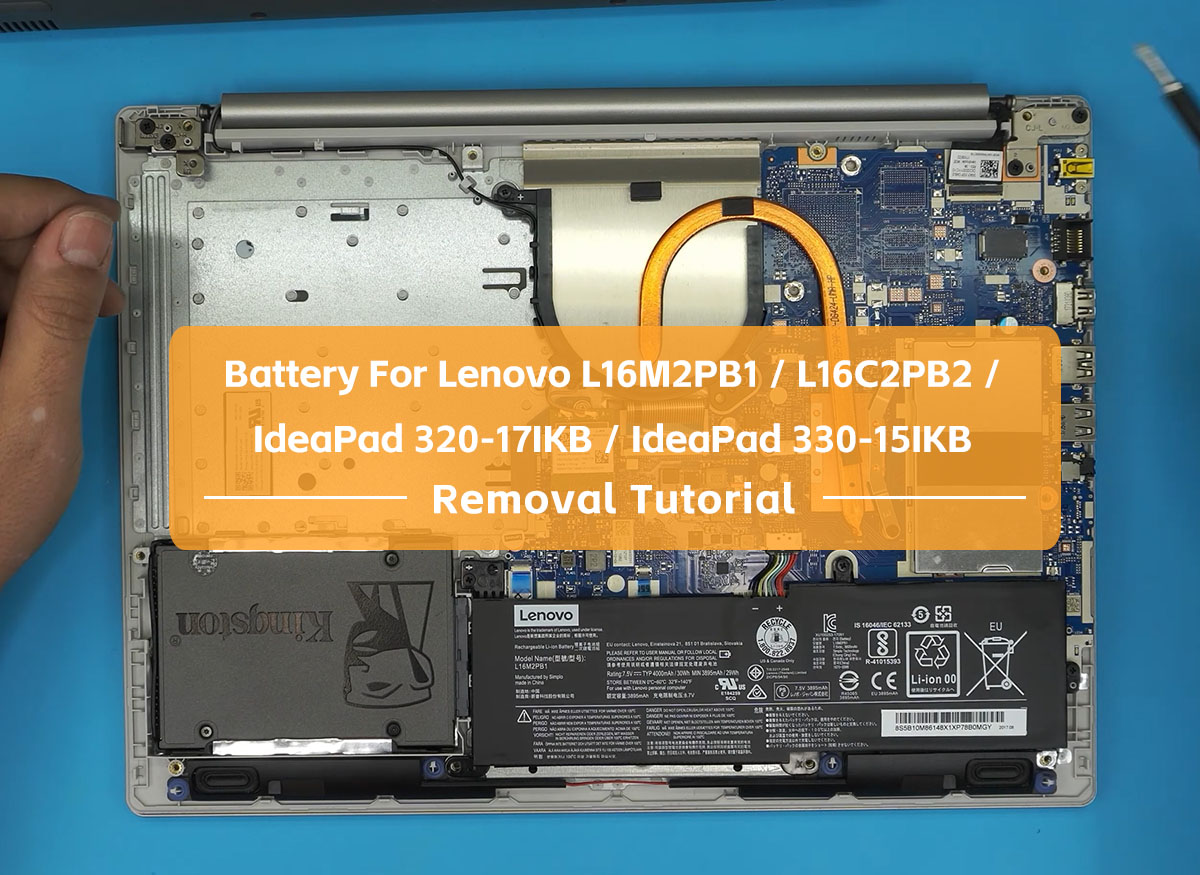

Battery Removal Tutorial For Lenovo L16M2PB1 / L16C2PB2 / IdeaPad 320-17IKB / IdeaPad 330-15IKB

Lenovo L16M2PB1 Battery Removal Tutorial

Before starting, make sure your laptop is fully powered off and unplugged from any power source. Use the right tools—typically a screwdriver set included in the package—and work on a non-conductive surface to prevent static electricity damage. It's also wise to wear anti-static wristbands to protect sensitive components.

This tutorial will guide you in detail how to remove the Lenovo L16M2PB1 / L16C2PB2 / IdeaPad 320-17IKB / IdeaPad 330-15IKB laptop battery.


Step 1
  • Turn the laptop over and place it on a flat surface.

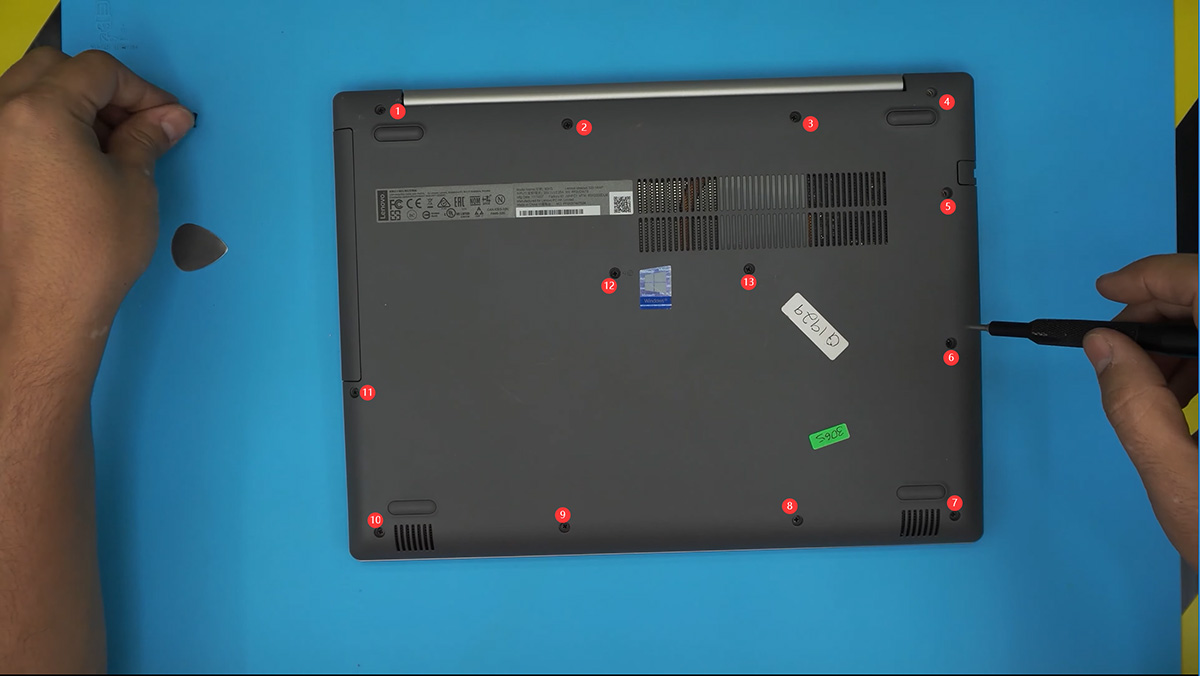

  • Carefully inspect the bottom and locate all 13 screws. Using the appropriate screwdriver, unscrew them one by one.
  • Remember to apply gentle pressure while unscrewing to avoid damaging the screw holes.
Lenovo L16M2PB1 Battery Removal Tutorial

Step 2
  • After removing these screws, don't forget to take out the optical drive on the left side.
  • The optical drive is usually secured with clips, which can be gently pressed or slid to remove.
Lenovo L16M2PB1 Battery Removal Tutorial

Step 3

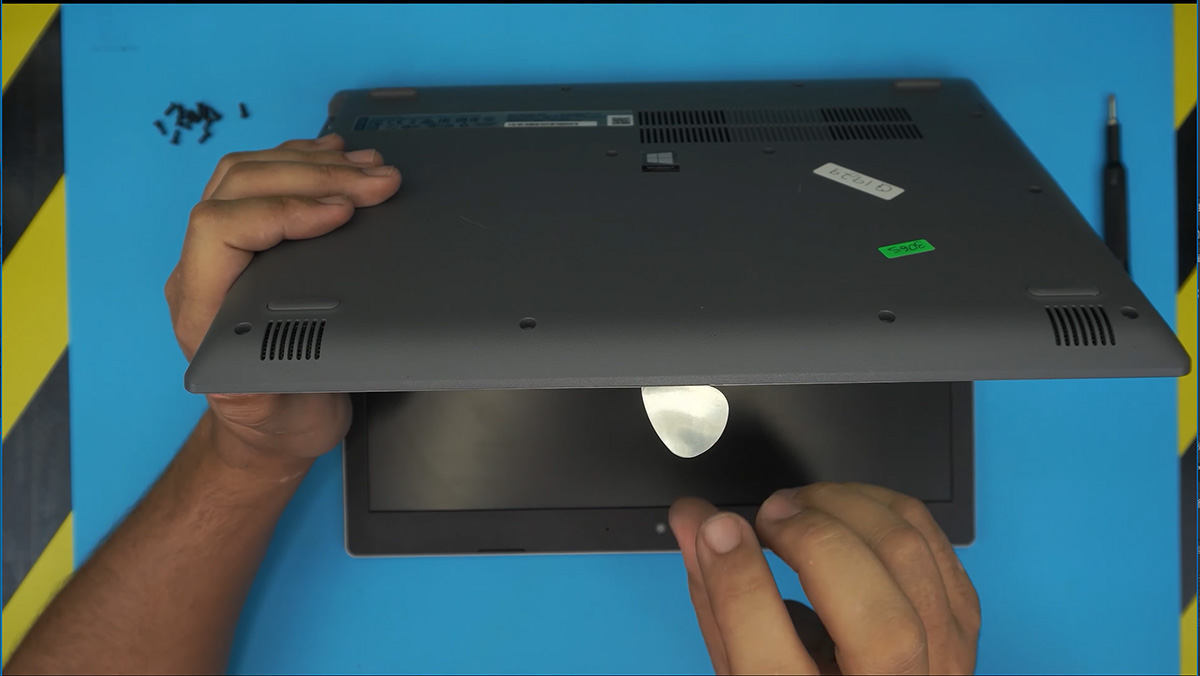

  • Use a plastic pry tool to carefully pry open the bottom casing.
  • Start prying from one side and slowly work your way around the edges until the bottom casing completely separates.

NOTE: When inserting the pry tool, make sure not to apply too much force to avoid damaging the plastic clips.

Lenovo L16M2PB1 Battery Removal Tutorial

Step 4

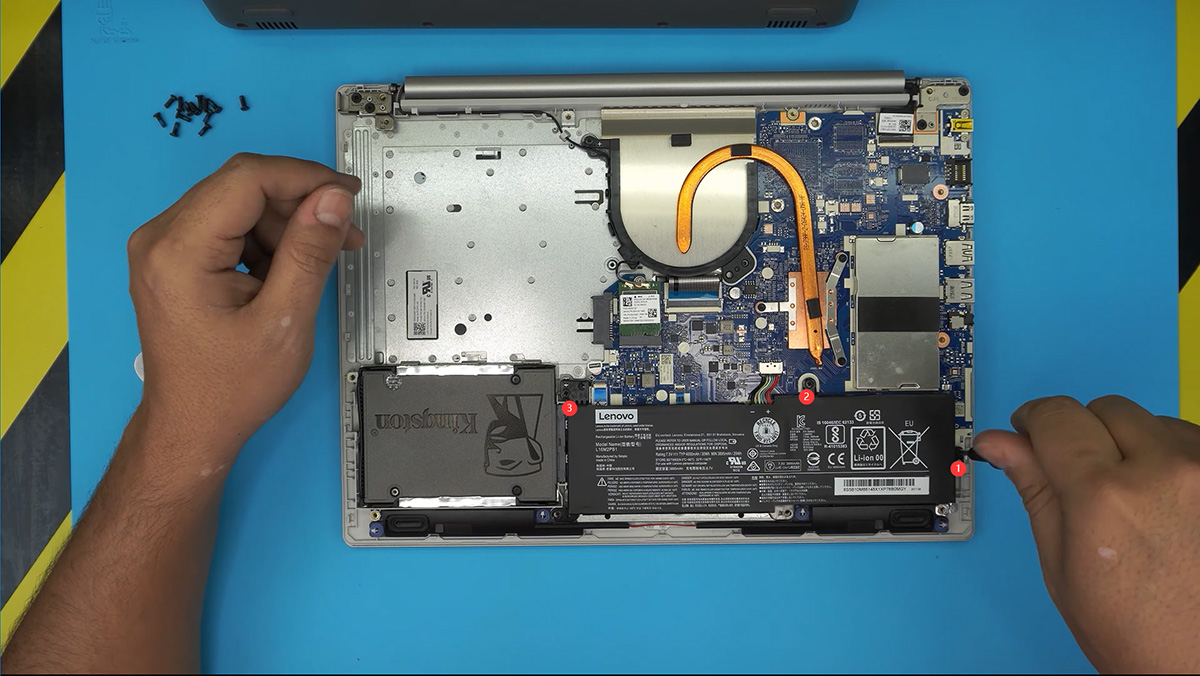

  • Once the bottom casing is removed, locate the battery. You will notice that the battery is secured with three screws.
  • Use your screwdriver to remove these three screws and set them aside, ensuring they are kept separate from the screws for the casing to avoid confusion.
Lenovo L16M2PB1 Battery Removal Tutorial

Step 5

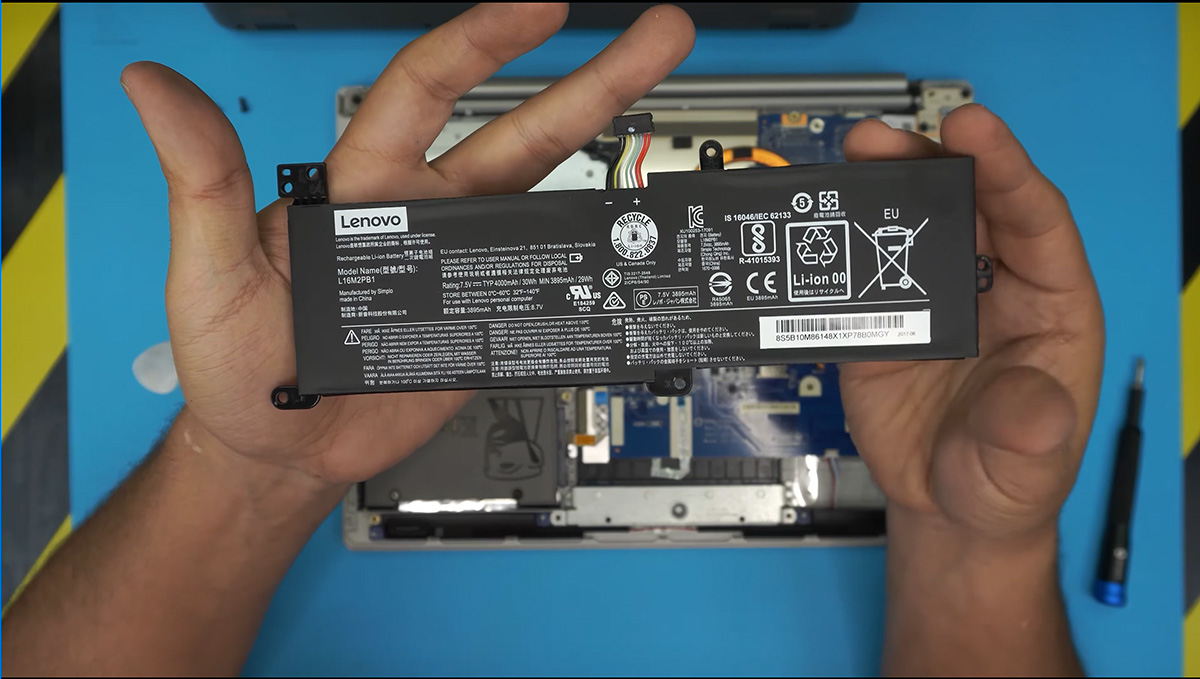

  • Carefully remove the old battery and check the battery connector to ensure it isn't damaged.

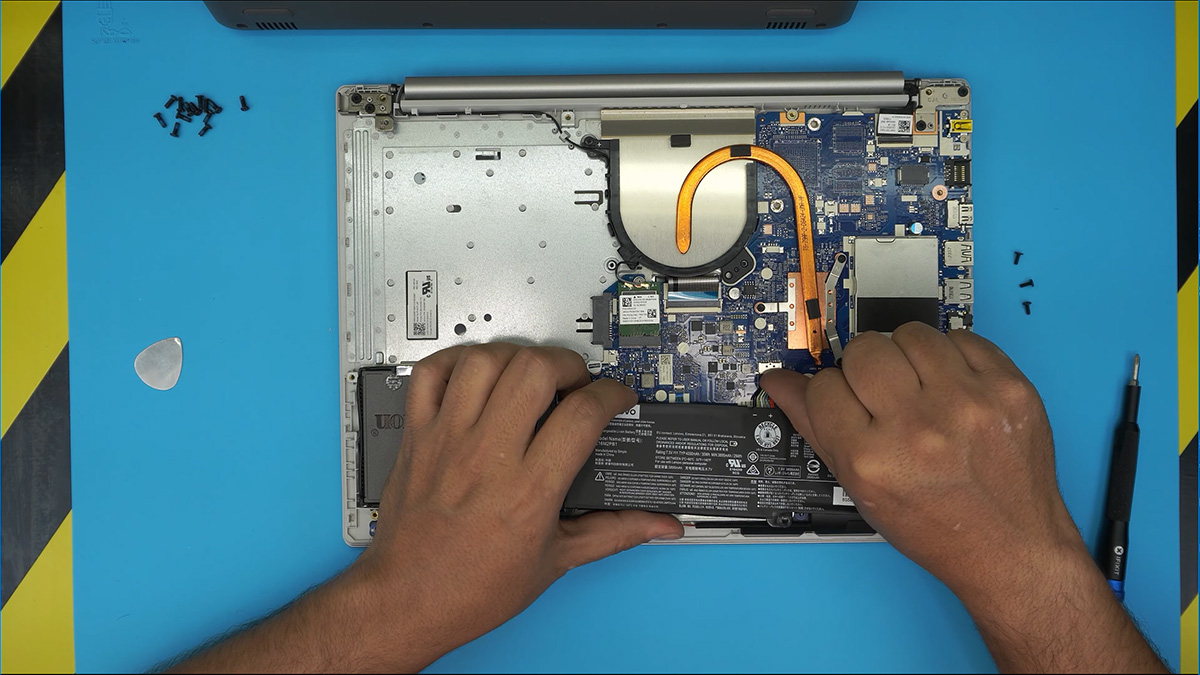

  • Take the new battery and align it with the battery slot, making sure the connector fits correctly.
  • When installing the new battery, ensure it's properly oriented and not inserted in the wrong direction.
Lenovo L16M2PB1 Battery Removal Tutorial

Step 6
  • After installing the new battery, reassemble the laptop by tightening the screws that were removed earlier.
  • Double-check that each screw is tightened securely to ensure the battery is firmly in place.
  • Reinstall the optical drive by sliding it back into its original position, making sure it's securely fitted.
Lenovo L16M2PB1 Battery Removal Tutorial

Step 7

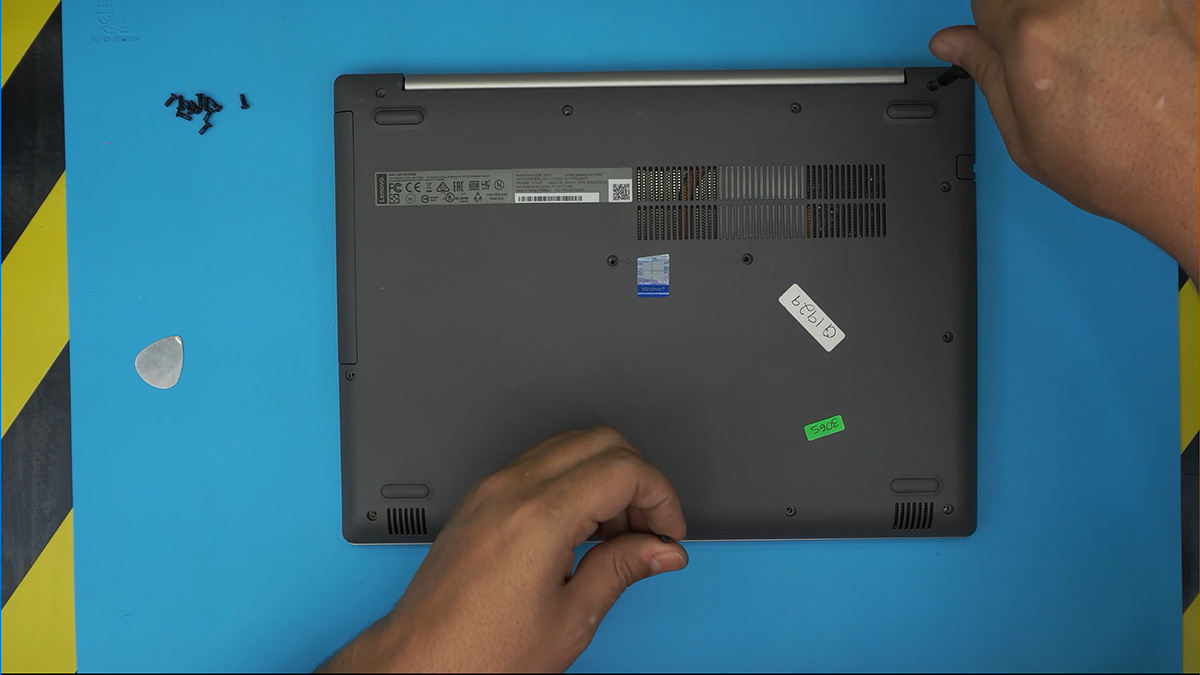

  • Tighten the screws on the back case of your laptop.
  • Power it on and test it to see if it works properly.
Lenovo L16M2PB1 Battery Removal Tutorial
