Battery Removal Tutorial For Asus E510M / C31N1912 / B31N1912

Asus E510M / C31N1912 / B31N1912 Battery Removal Tutorial

Before starting, make sure your laptop is fully powered off and unplugged from any power source. Use the right tools—typically a screwdriver set included in the package—and work on a non-conductive surface to prevent static electricity damage. It's also wise to wear anti-static wristbands to protect sensitive components.

This tutorial will guide you in detail how to remove the Asus E510M / C31N1912 / B31N1912 laptop battery. You can watch the tutorial video below.

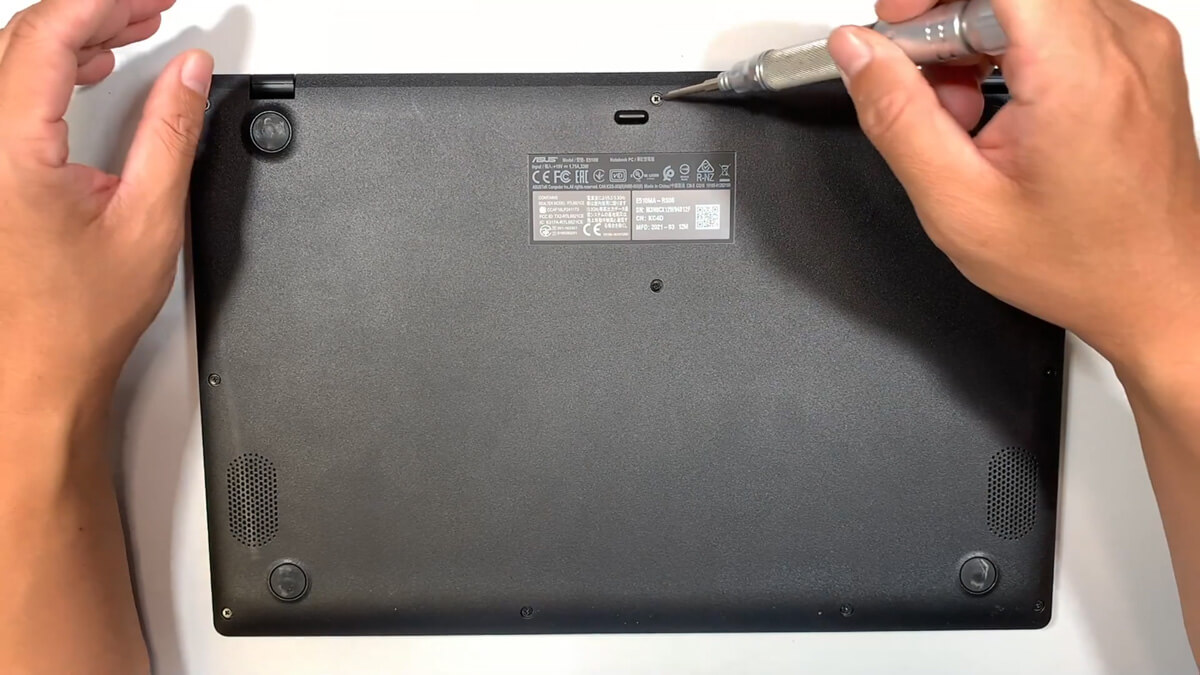

Step 1

Remove all screws from the bottom of your laptop.

Asus E510M / C31N1912 / B31N1912 Battery Removal Tutorial

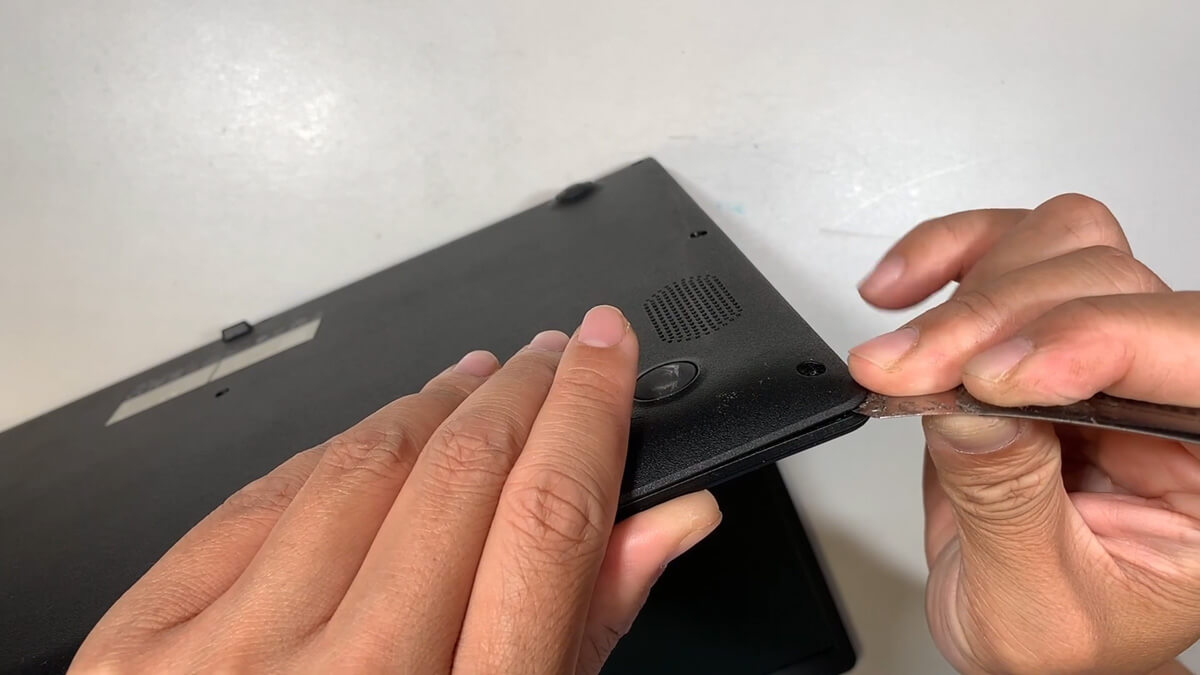

Step 2

Use a thin metal or plastic blade to separate your laptop casing.

Asus E510M / C31N1912 / B31N1912 Battery Removal Tutorial

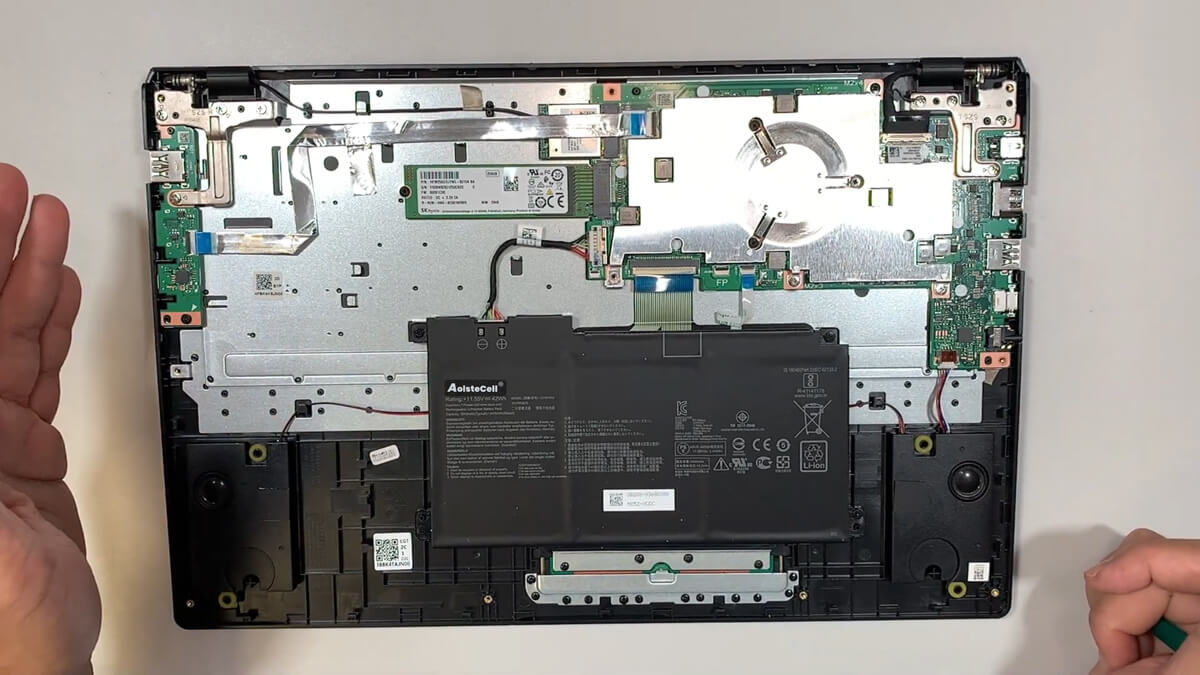

Step 3

Open the laptop casing, and the internal structure is as shown in the picture, with the battery in the lower middle.

Asus E510M / C31N1912 / B31N1912 Battery Removal Tutorial

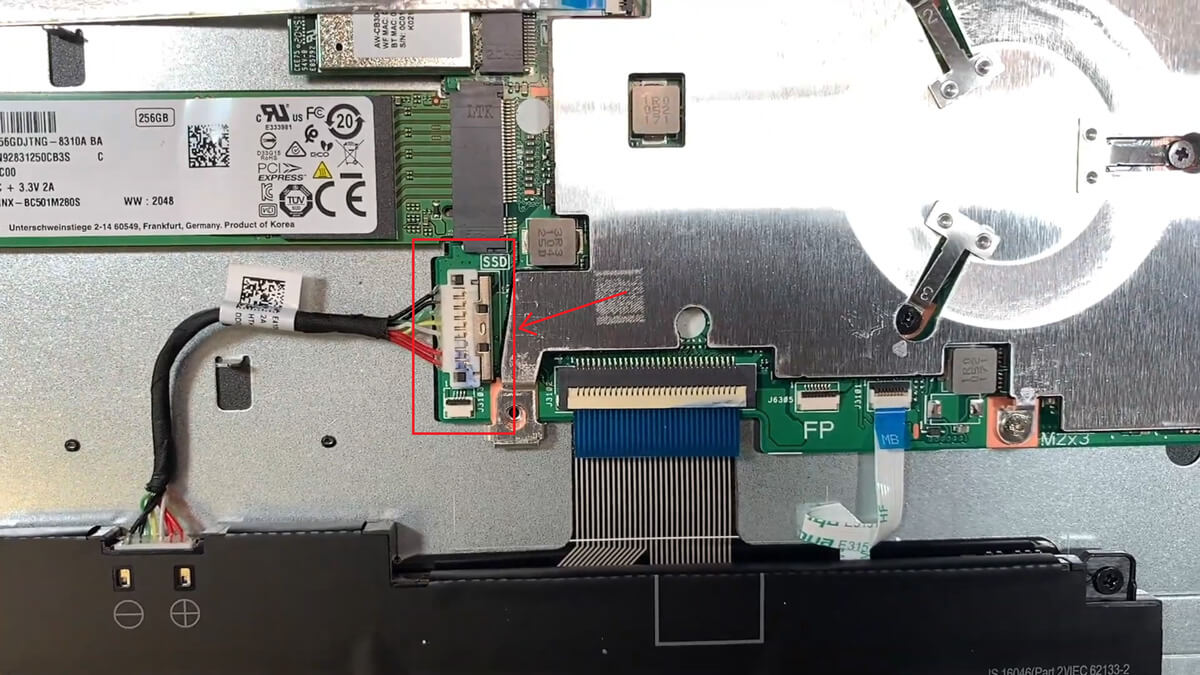

Step 4

The following is a close-up of the connection between the battery and the laptop. Please be careful when removing it to avoid damaging the interface on the laptop.

Asus E510M / C31N1912 / B31N1912 Battery Removal Tutorial

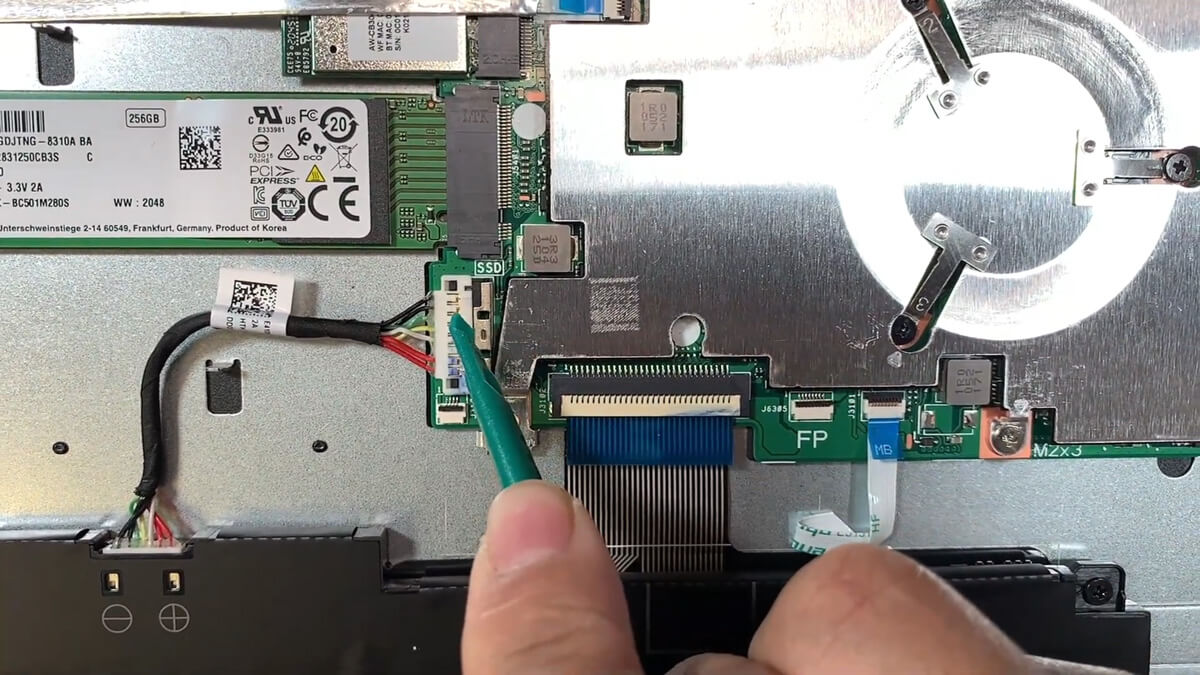

Step 5

Next, use a plastic scraper to pry up the metal cover at the connector.

Asus E510M / C31N1912 / B31N1912 Battery Removal Tutorial

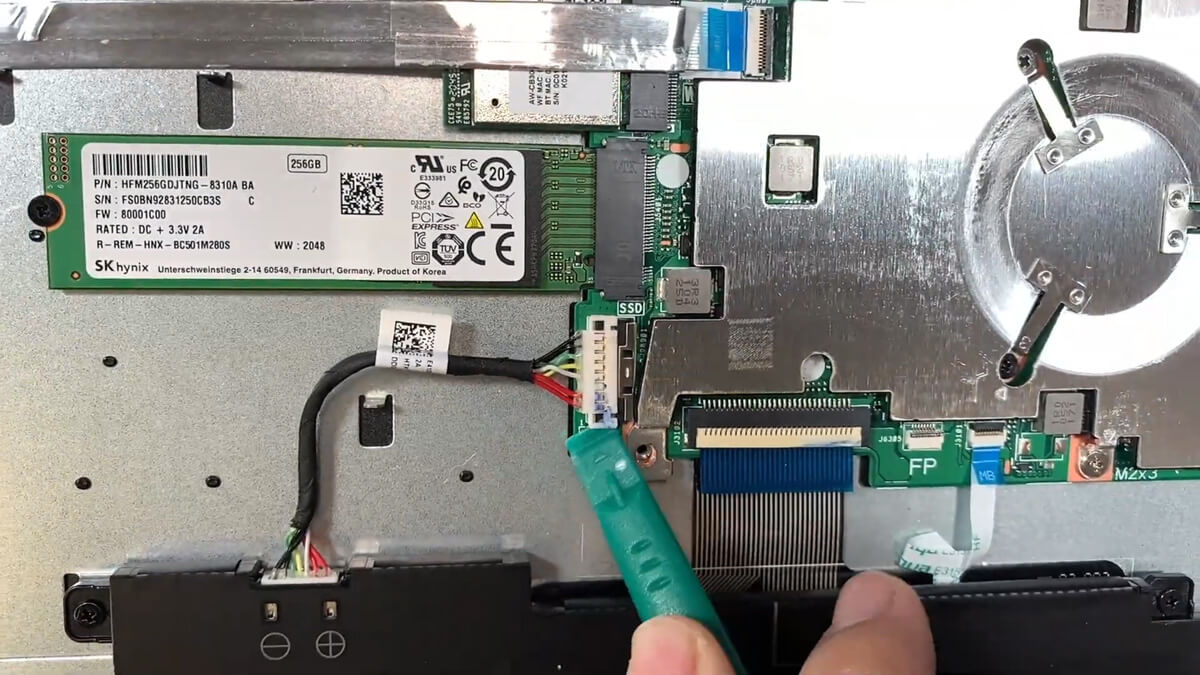

Step 6

Then, carefully pry up the connection between the battery cable and the laptop using a plastic scraper. This may take some effort, so try it a few times. Please be careful during this process!

Asus E510M / C31N1912 / B31N1912 Battery Removal Tutorial

Step 7

As shown in the picture below, the battery cable is successfully separated from the laptop connection.

Asus E510M / C31N1912 / B31N1912 Battery Removal Tutorial

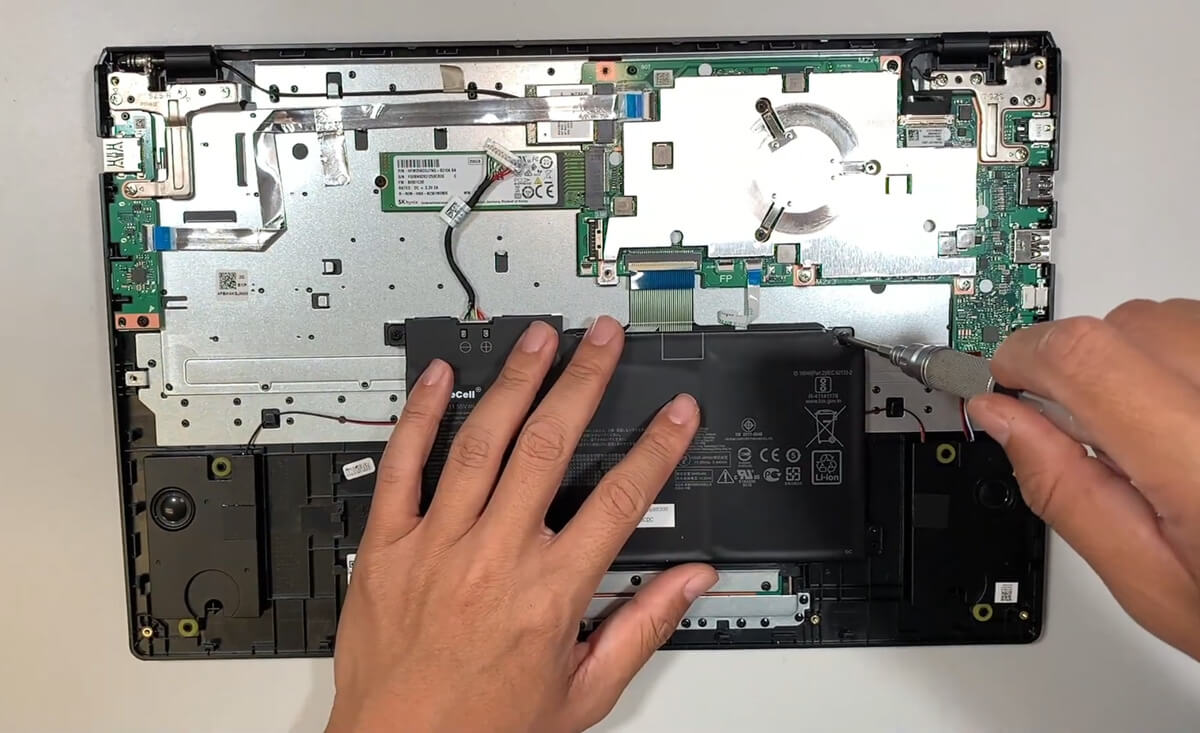

Step 8

Finally, remove the screws on the battery and you can remove the battery from your laptop.

Asus E510M / C31N1912 / B31N1912 Battery Removal Tutorial
