Before starting, make sure your laptop is fully powered off and unplugged from any power source. Use the right tools—typically a screwdriver set included in the package—and work on a non-conductive surface to prevent static electricity damage. It's also wise to wear anti-static wristbands to protect sensitive components.
This tutorial will guide you in detail how to remove the ThinkPad T460S / ThinkPad T470S / 00HW038 / 00HW022 / 01AV406 laptop battery. You can watch the tutorial video below.
Step 1

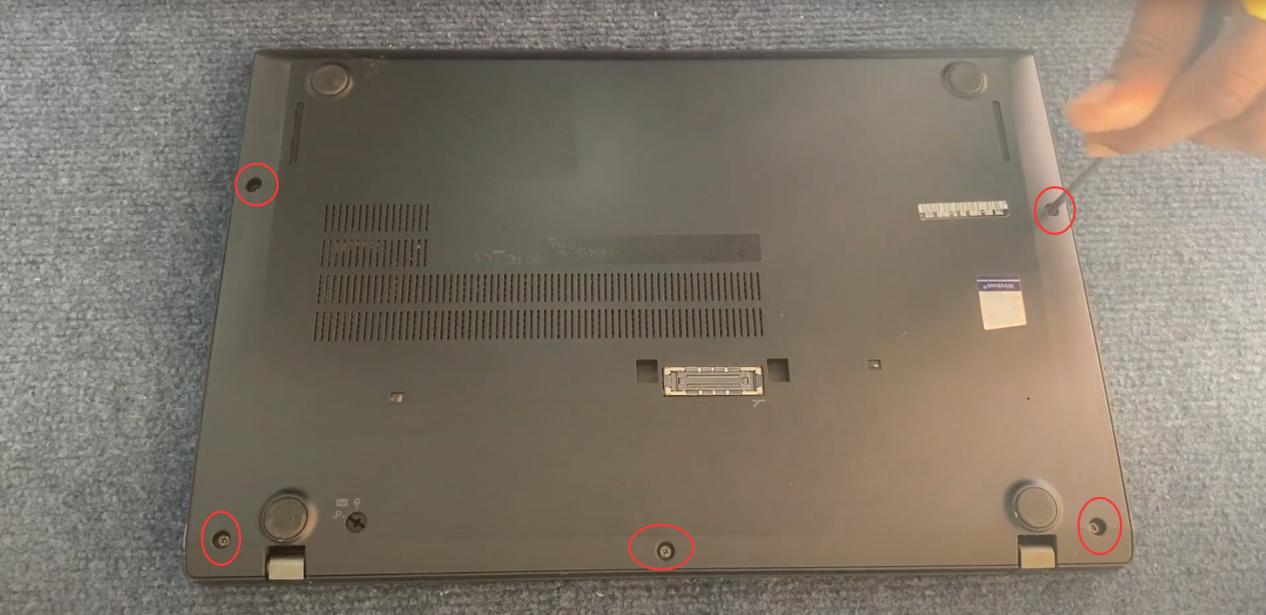

Place the laptop face down on the table, and use a screwdriver to unscrew the screws.
Step 2

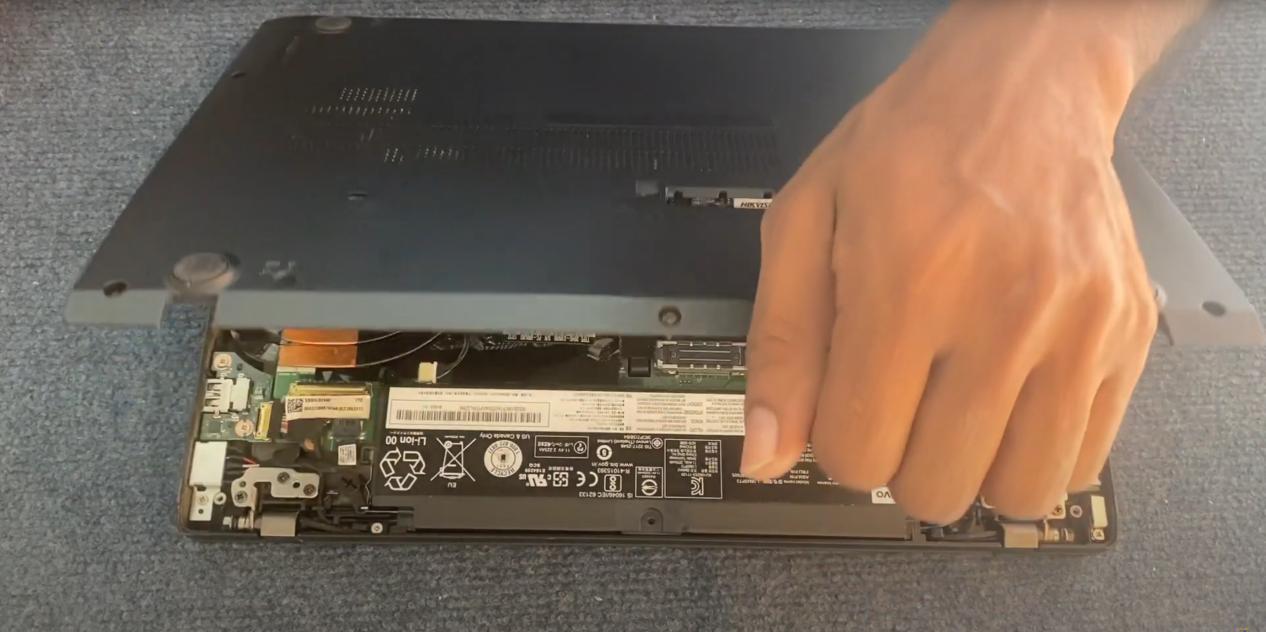

Gently lift and remove the back cover.
Step 3

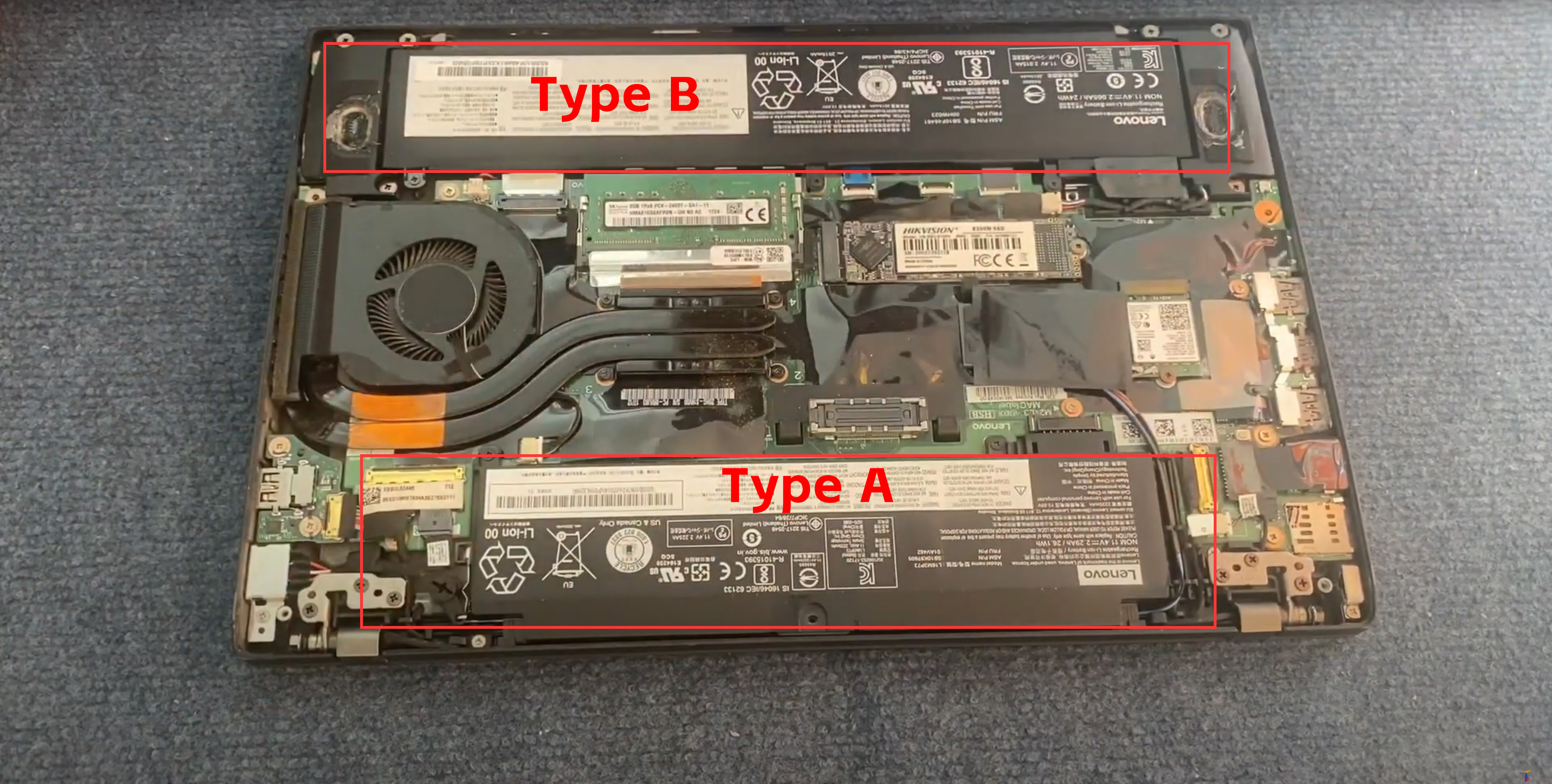

This laptop has two batteries, Type A and Type B.
Step 4

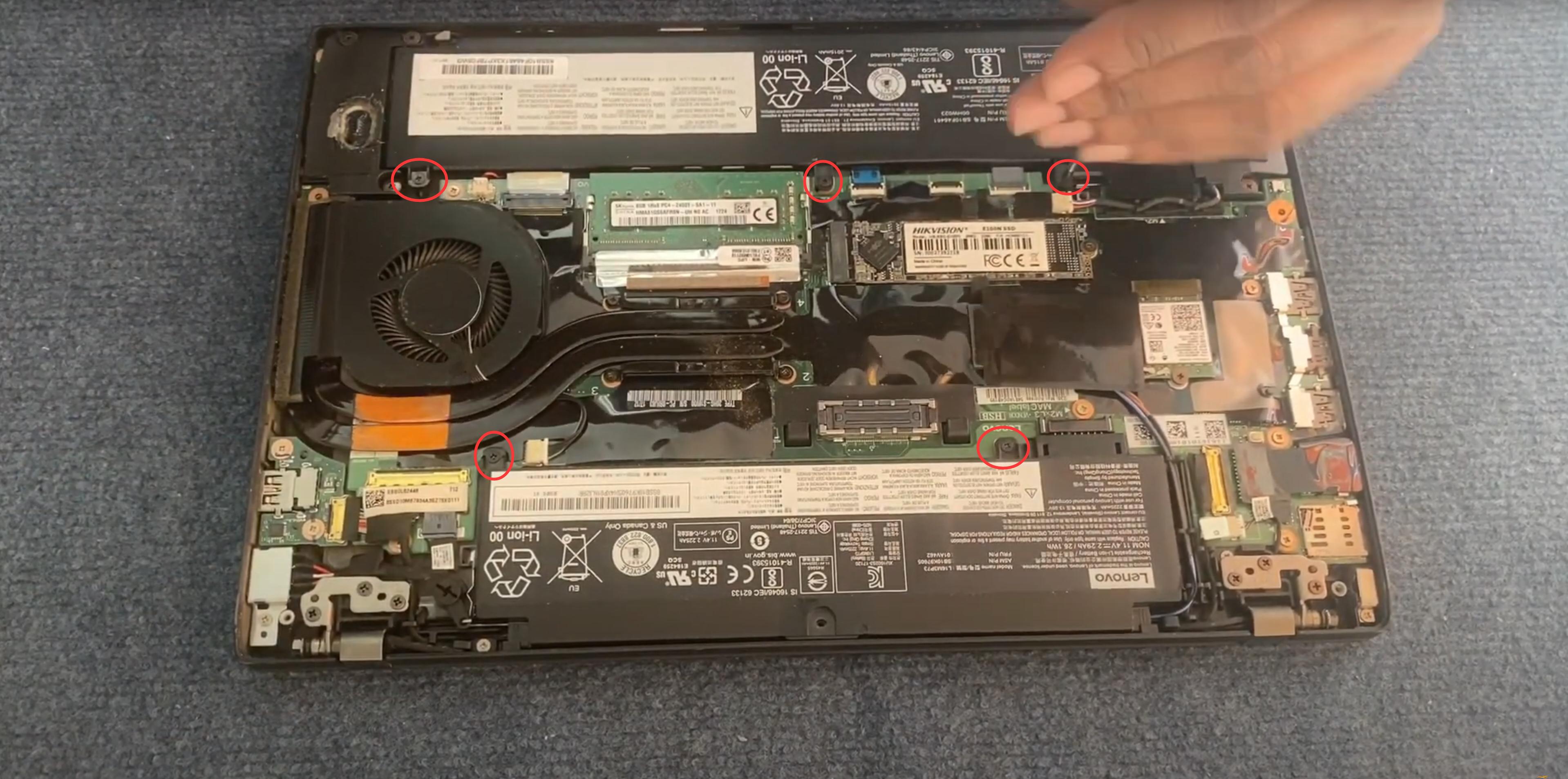

Use a screwdriver to unscrew the screws on the battery and remove it.
Step 5

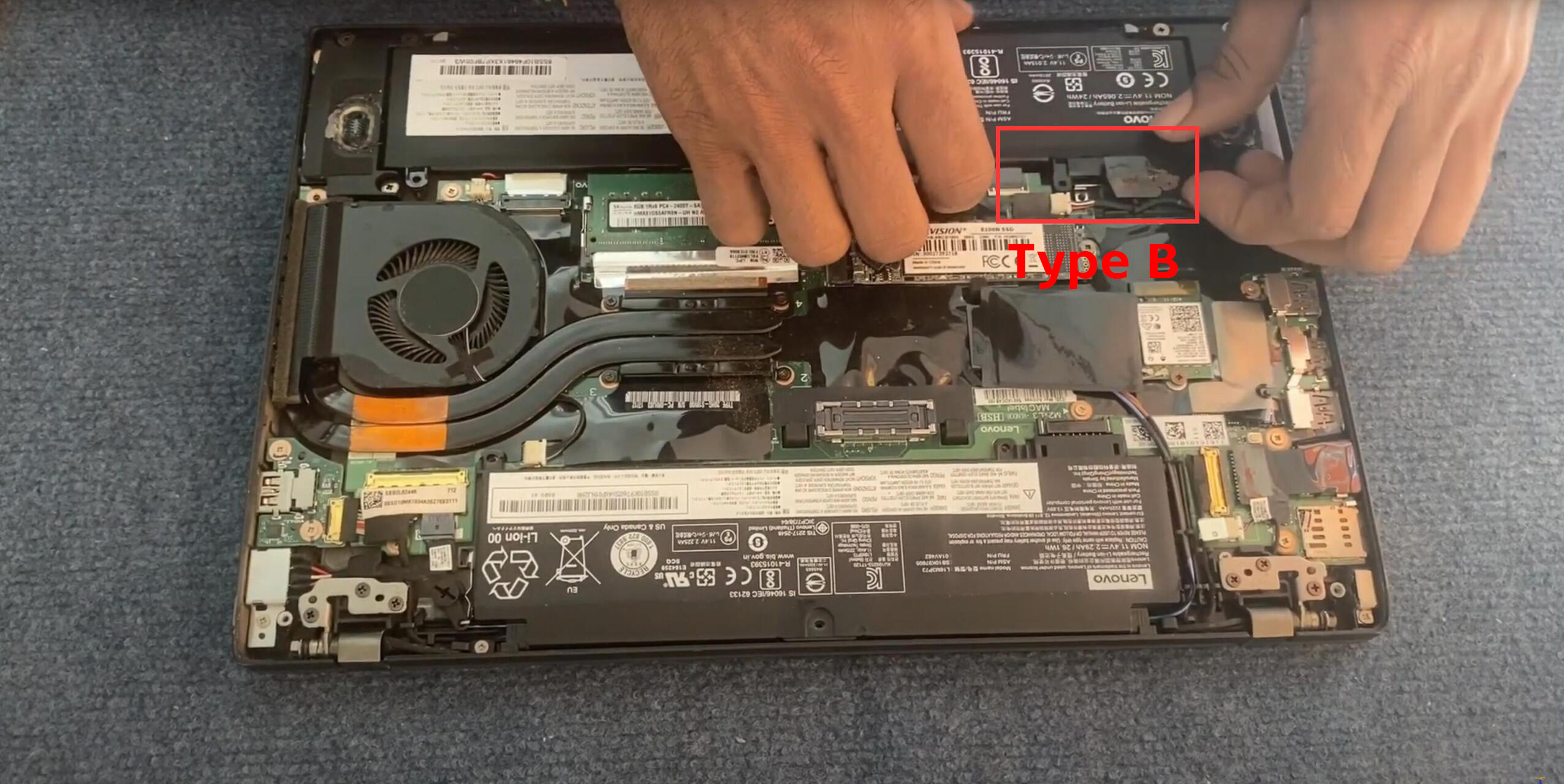

Gently pry open the battery connector and remove the Type B battery.
Step 6

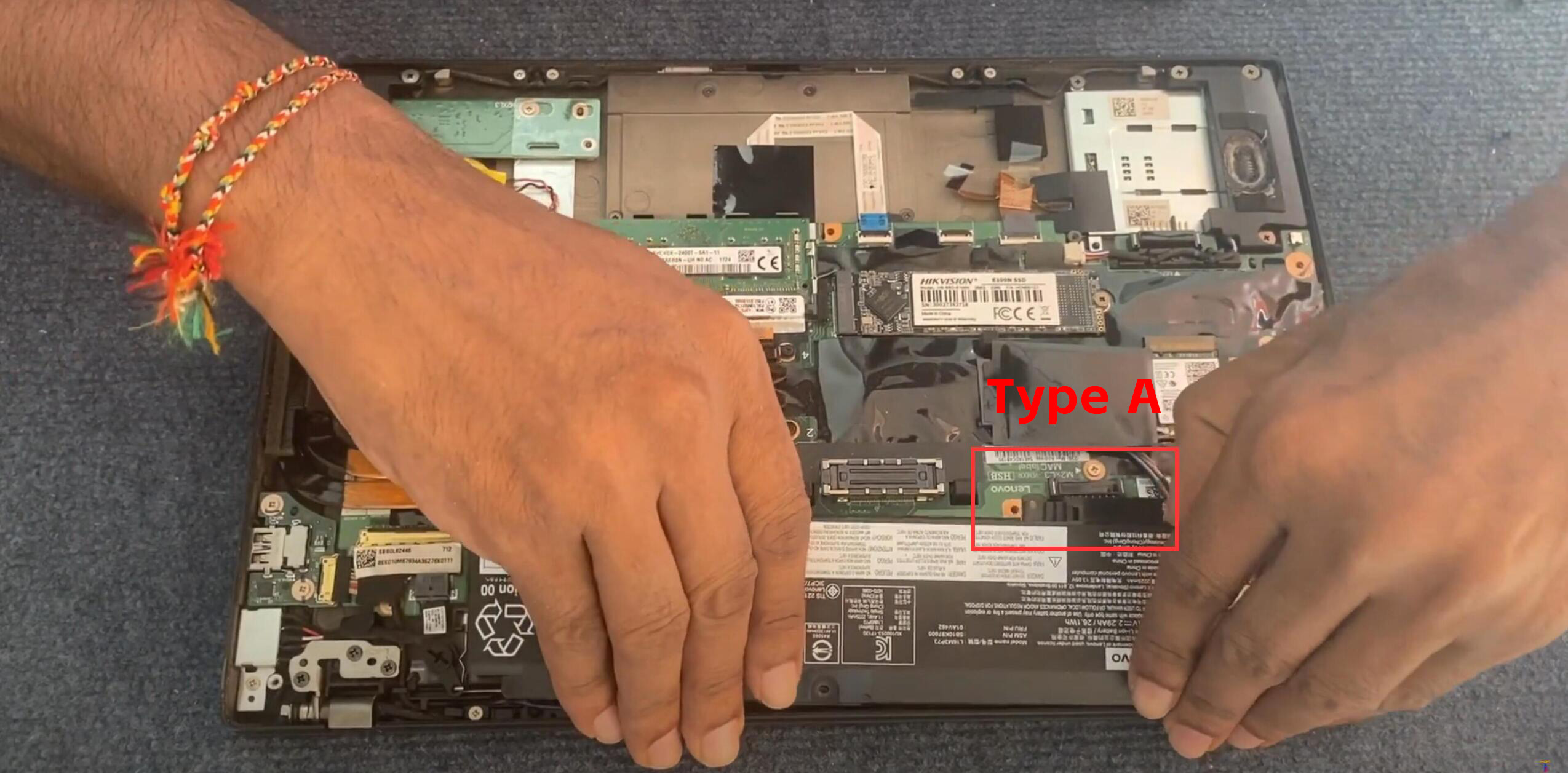

Gently pry open the battery connector and remove the Type A battery.
Step 7

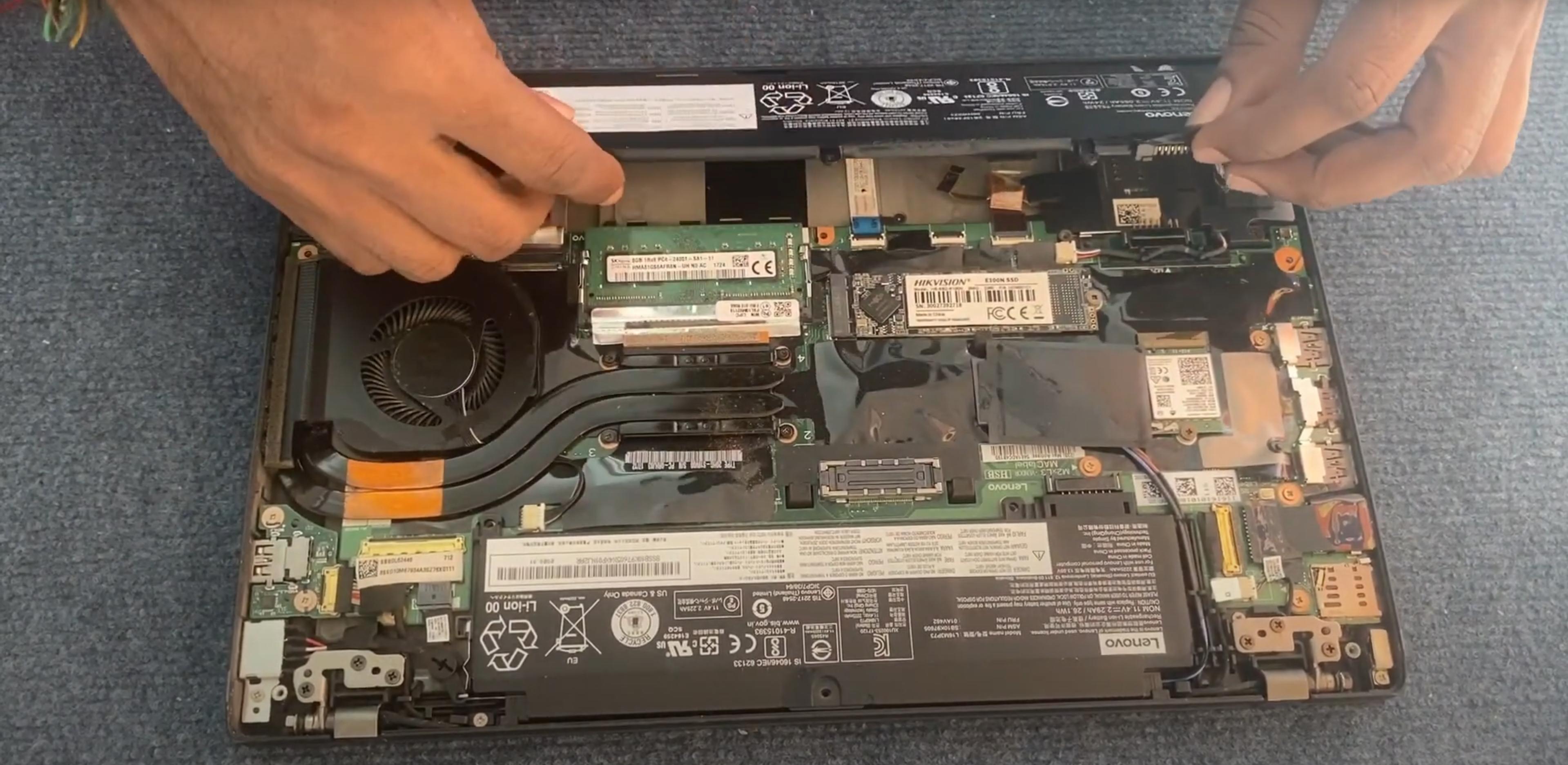

Install the new batteries into your laptop.
