Before starting, make sure your laptop is fully powered off and unplugged from any power source. Use the right tools—typically a screwdriver set included in the package—and work on a non-conductive surface to prevent static electricity damage. It's also wise to wear anti-static wristbands to protect sensitive components.
This tutorial will guide you in detail how to remove the HP EliteBook x360 1030 G3 / BM04XL / HSTNN-DB8L. You can watch the tutorial video below.

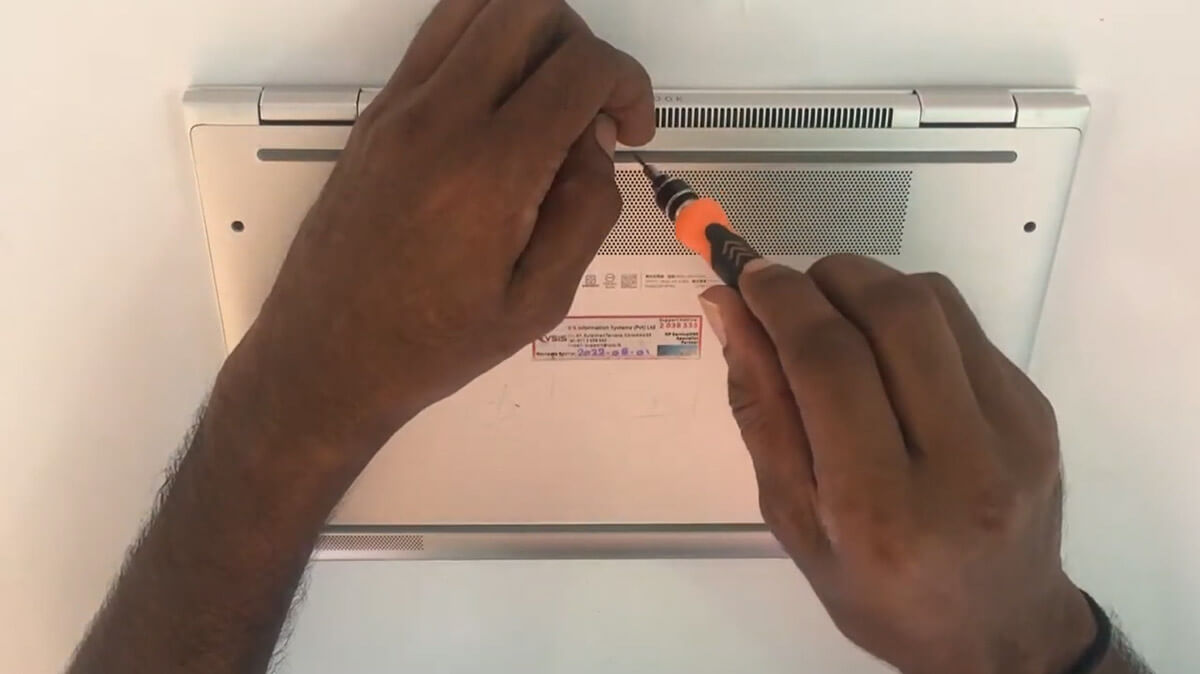

Step 1
Remove all screws from the bottom of your laptop.

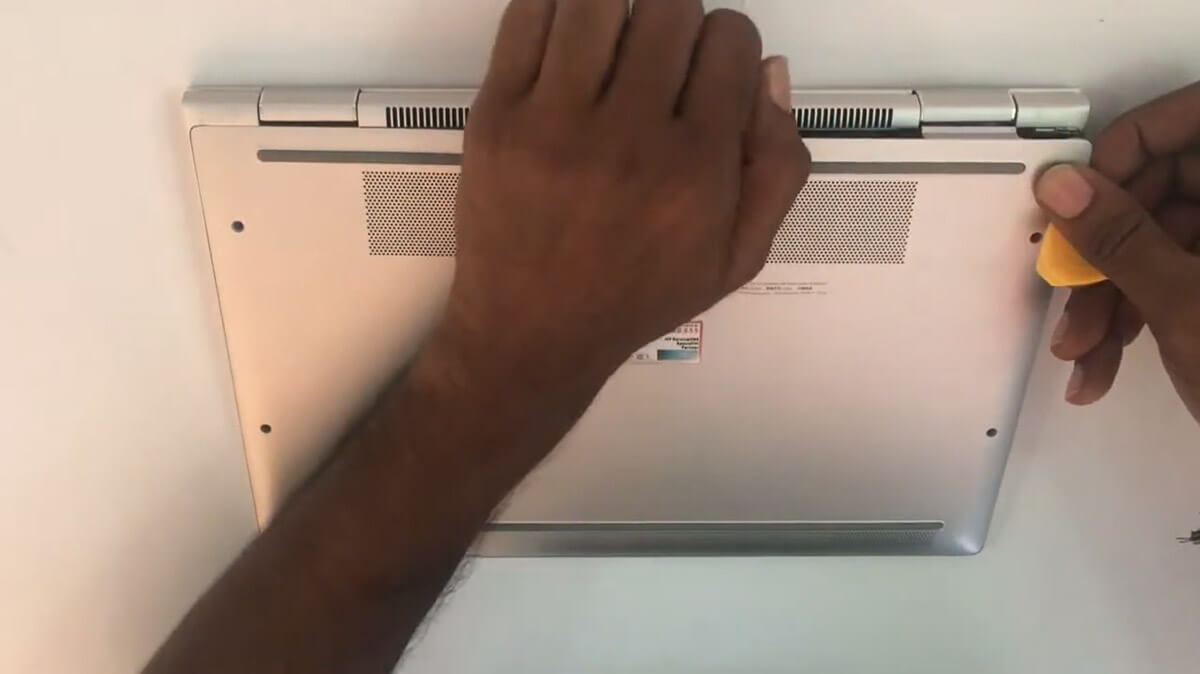

Step 2
Use a plastic blade to separate your laptop casing.

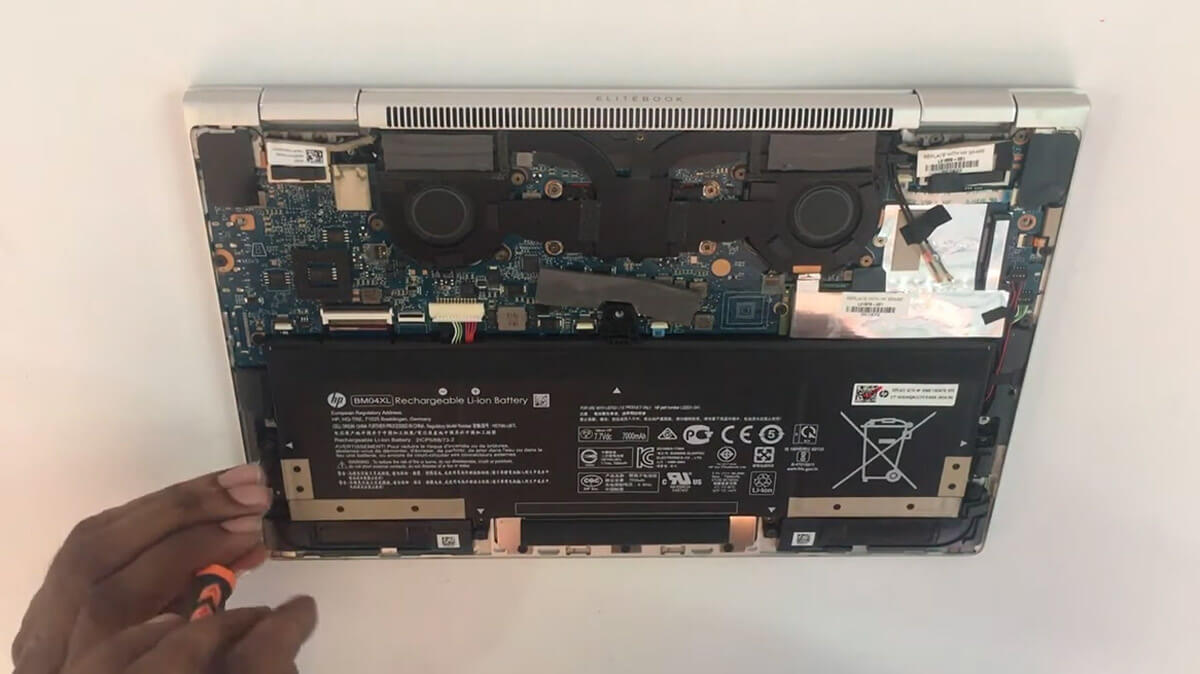

Step 3
Open the laptop casing, and the internal structure is as shown in the picture below, with the battery in the lower middle.

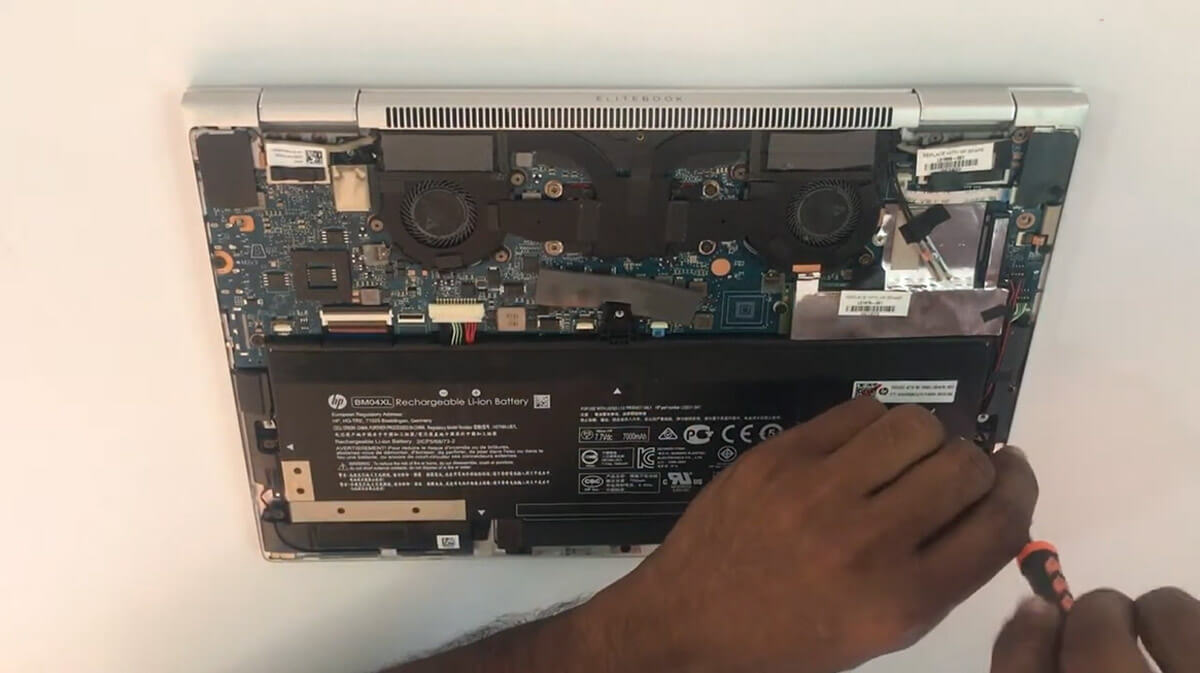

Step 4
First remove the screws next to the battery, be careful not to lose the screws.

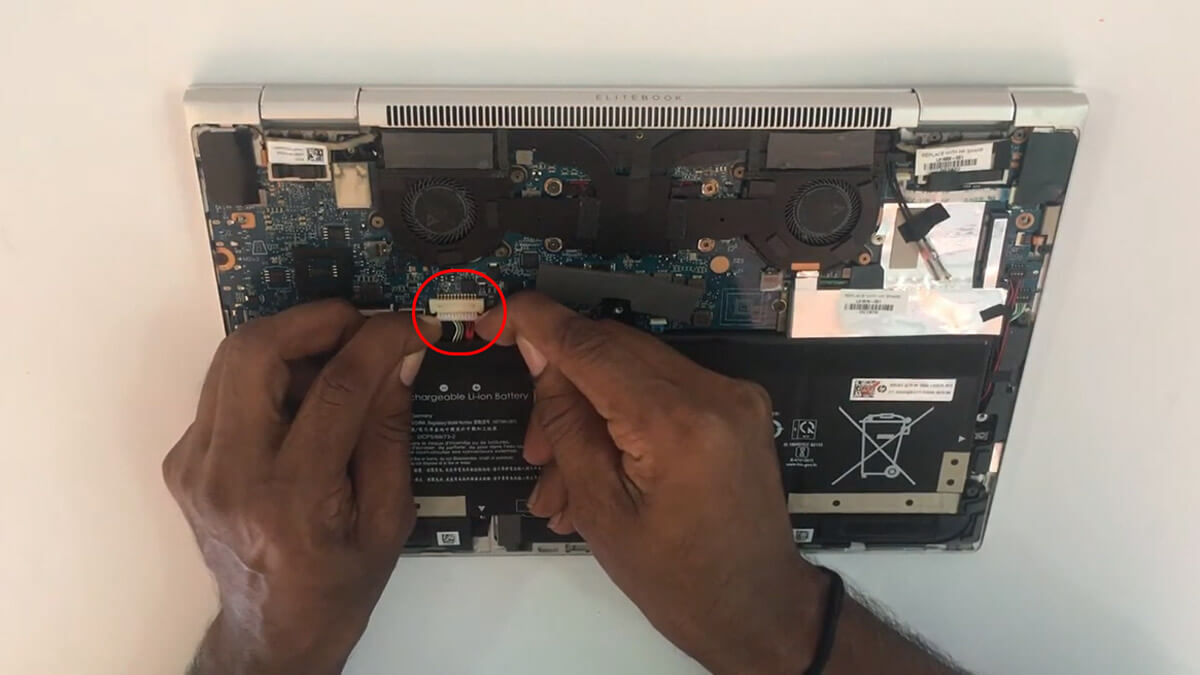

Step 5
Below is the connection between the battery and the laptop. Please be careful when removing to avoid damaging the interface on the laptop.
Step 6
Take the new battery and connect the connector first!
Step 7
Finally, tighten the screws again and the new battery is installed.
